Product Details:
|
|
| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-L1300 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||

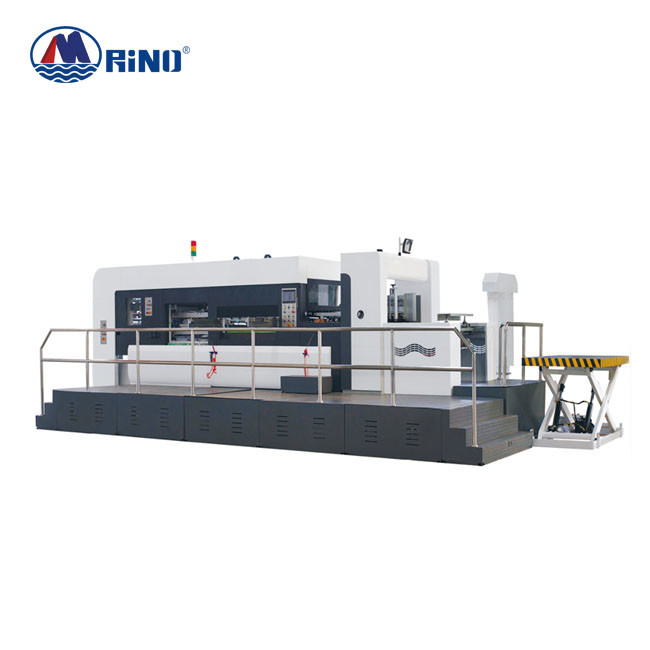

| Name: | Automatic Flatbed 1300mm Carton Box Die Cutting Machine Price | Maximum Paper Size: | 1300×960mm |
|---|---|---|---|
| Minimum Paper Feeding Size: | 550×500mm | Die Cutting Accuracy: | ±0.5mm |
| Maximum Speed: | 6000pcs/H | Total Power: | 25KW |
| Total Weight: | 26 T | Minimum Front Scrap Size: | ≥8mm |
| High Light: | Flatbed Carton Box Cutter,Automatic Carton Box Cutter,6000pcs/H Carton Box Die Cutting Machine |
||
Product Description
*The wallboard and platform of the whole machine are made of high-strength ductile iron to ensure high die-cutting pressure
*Imported PLC control, touch screen adjustment, all adjustments are adjusted by the motor, saving time and effort
*Automatic counting and non-stop paper output design, with hydraulic lifting platform paper feeding system, convenient for non-stop paper feeding and paper output
| Maximum paper size |
1300×960mm
|
| Minimum paper size |
550×500mm
|
| Maximum die cutting pressure |
300N/c㎡
|
| Maximum die cutting size |
1300×945mm
|
| Suitable paper | corrugated board 1- 8mm |
| Power | 25KW |
| Maximum speed | 6000pcs/H |
| Weight | 26T |
| Machine size |
8800*5040*2400mm
|
Main Units
|
|
Paper feeding unit *Independent servo-type leading edge, the feeding method can adjust the conveying length arbitrarily, minimizing the damage to the strength of corrugated cardboard *The left and right baffles can be adjusted electrically * High-power high-pressure fan is used to ensure the smooth delivery of warped cardboard, and the air volume can be adjusted by computer to adapt to 3-9mm corrugated paper
|
|
|
Die cutting unit * Safe and flexible rotating device design, making the panel adjustment faster and more convenient *The frame adopts pneumatic locking plate, and the design of protective beam and locking nut makes the template more stable *The die-cutting steel plate is made of 70Cr material, which is more durable; the upper part is equipped with a floating air flotation device, which makes the die-cutting plate easy to enter and exit
|
Finished Products
Our Factory
