2800mm Carton Box Folding Gluing Machine Automatic

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HF-GA2800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 30 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 2800mm Automatic Carton Box Folding Gluing Machine For Sale Model: HF-GA2800
Maximum Cardboard Size: 2800×1200mm Minimum Board Size: 440×170mm
Total Power: 12kw Diemension: 15000*4600mm
Voltage Supply: 380V/220V Function: Corrugated Cardboard Carton Box Pasting Gluing
High Light:

2800mm Carton Box Folder Gluer


Automatic Carton Box Folder Gluer


2800mm Carton Box Folding Gluing Machine

Product Description

2800mm Automatic Carton Box Folding Gluing Machine For Sale

Product Introduction of Carton Box Folder Gluer


1. Accurate suction and paper feeding

2. The second indentation makes the crease more accurate

3. The size of the mouth is well controlled, reducing waste

4. Second correction to eliminate the scissors mouth

5. Accurate counting

6. Fast carton forming speed

7. The flapping department makes the carton shape well

Parameter of Carton Box Folder Gluer







Size A(mm) 80-850 80-850 80-850 80-850
Size B(mm) 440-2200 440-2400 440-2600 440-2800
Size C(mm) 130-840 130-840 130-840 130-840
Size D(mm) 170-1100 170-1100 170-1100 170-1100
Installation area(mm) 4000×15000 4200×15000 4400×15000 4600×15000
Motor Power(kw) 12kw 12kw 12kw 12kw
Maximum unfolding size(mm) 2200×1100 2400×1100 2600×1100 2800×1200
Minumum unfolding size(mm) 440×170 440×170 440×170 440×170

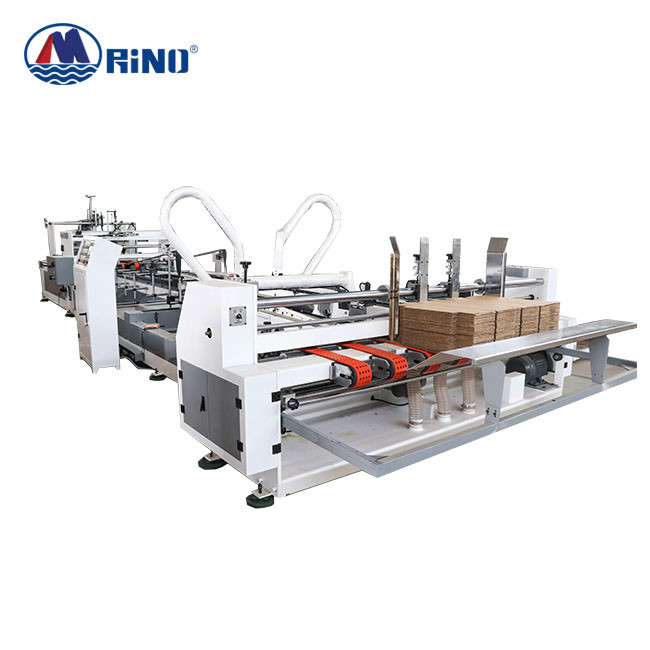

2800mm Carton Box Folding Gluing Machine Automatic 0

Details Introduction

2800mm Carton Box Folding Gluing Machine Automatic 1

Paper Feeding Unit


1. Adopting imported high-tech material suction belt, suction and feeding paper, automatic stacking input, ensuring smooth and high-speed paper feeding.

2. The high-grade electromagnetic clutch and electromagnetic brake system are selected to enable the paper feeding section to operate in a single sheet or continuously, effectively reducing the waste of cardboard and the accuracy of output cardboard in the specification adjustment.


2800mm Carton Box Folding Gluing Machine Automatic 2

Paper folding unit


The folding part is equipped with three pressure line correction devices, which can accurately and effectively correct the deviation of the cardboard pit line, so that the entire carton can be folded most accurately, and the occurrence of the scissors can be well controlled.


Electrical device

Name Model Place of origin
PLC Siemens Germany
Touch screen Siemens Germany
Contactor Siemens Germany
Intermediate relay Siemens Germany
Emergency stop Siemens Germany
Button Siemens Germany
Key switch Siemens Germany
Limit switch Siemens Germany
Photoelectric switch Siemens Germany
Terminals Siemens Germany
Cooling fan   China
Electric bell   China
Thermal overload relay Schneider Germany
Open 3P Schneider Germany
Open 1P Schneider Germany
Large load rectangular plug-in   China
Aviation plug-in   China
Transformer 300VA China
Frequency converter Siemens Germany



2800mm Carton Box Folding Gluing Machine Automatic 3

Operation instruction of folder gluer machine.pdf
