Product Description

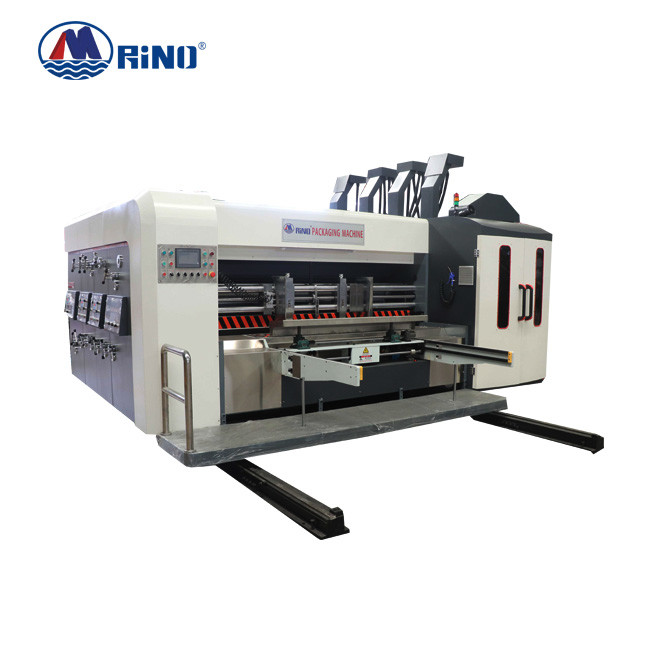

Automatic 2 Color Carton Box Flexo Printing Machine With Die Cutter Slotter

Box Flexo Printing Machine Introduction

1. This machine can complete multiple processes such as printing, slotting, creasing, edge trimming, corner trimming, punching, die-cutting, stacking, etc. at one time.
2. The whole machine is designed according to high requirements, with reliable functions and humanized operation. It can be set, modified, implemented, changed and memorized in a short time, and the data can be displayed accurately.
3. All drive rollers are made of high-quality steel with hard chrome plating and grinding.
4. The main drive gears are made of high-quality steel, heat-treated by grinding teeth, and each gear adopts a cross-slip system to maintain the fixed position of the gears and ensure the transmission accuracy.
5. The main drive roller adopts keyless connection to reduce the connection gap and ensure the printing accuracy.
6. The gear system of this machine adopts sealed spray lubrication and automatic balancing device of engineering oil; keep the oil level of each unit equal.
7. Phase adjustment adopts touch screen PLC control

Parameter of Carton Flexo Printing Machine

Main units

Paper feeding unit   Leading edge feeding system, variable frequency to adjust the air volume, accurate and stable feeding. Single feeding roller model, quick replacement mechanism of first feeding rubber roller, with spring adjustment function, which can prevent deformation and ensure accurate feeding of cardboard. Brushes and vacuums remove dust from circuit board surfaces(optional).

Printing unit   1.Printing Roller (1)With printing plate, outer diameter φ550mm (2)High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running (3)Roller horizontal direction and circumferential direction with datum line, convenient for align plate (4)Fixed coil axis, suitable for standard hanging slats, realize rapid change plate (5)Electric 360° adjust printing roller, automatic digital display adjustment (6)Installed with foot switch to control plate roller reversing, convenient change plate

Die Cutting Unit   (1)Rubber roller mechanical spiral commutation 40mm move about horizontal structure (2)Die-cutter phase, computer and electric digital control. (3)Horizontal phase, computer and electric digital control, range ±5mm (4)Rubber roller and die roller gap mechanical control,

Packaging&shipping

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
