RINO Carton Box Flexo Printing Machine With Die Cutter

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: RINO Carton Box Flexo Printing Machine With Die Cutter Price In China Grade: Automatic
Weight: 20T Voltage: 380V
Die Cutting Precision: ±1.5mm Tinted Precision: ±0.5mm
Total Power: 52 KW Design Speed: 260Pcs/Min
High Light:

Carton Box Flexo Printing Machine 260Pcs/Min


RINO Carton Box Flexo Printing Machine

Product Description

RINO Carton Box Flexo Printing Machine With Die Cutter Price In China
Carton Box Flexo Printing Machine Introduction
Carton box flexo printing machine adopts digital touch screen man-machine interface operation, order storage, one-key adjustment, phase synchronization control, dual-mode lift-off roller (to prevent ink accumulation), cruise control, preset stop, automatic baffle , unit safety emergency stop, lock machine linkage, automatic splitting and combining unit, phase speed control, all adjustments have two sets of manual and automatic modes, fan frequency conversion linkage, all control two sets of protection mechanisms to avoid damage to machinery and printing equipment, The rear main control screen is simple and quick to operate.

Parameter of Carton Flexo Printing Machine


Model HP-LM1200
Width 2900mm
Maximum speed(pcs/min) 260
Wallboard thickness(mm) 60
Gear thickness(mm) 60
Maximum paper size(mm) 1200 X 2600
Minimum paper size(mm) 350 X 650
Maximum printing size(mm) 1200 X 2500
Standard printing plate thickness(mm) 3.2---7.2
Cardboard thickness(mm) 3---12
Precision(mm) Tinted accuracy ±0.5, Slotting accuracy±1.5
Power (kw) 52
Total power(kw) 58



Main units

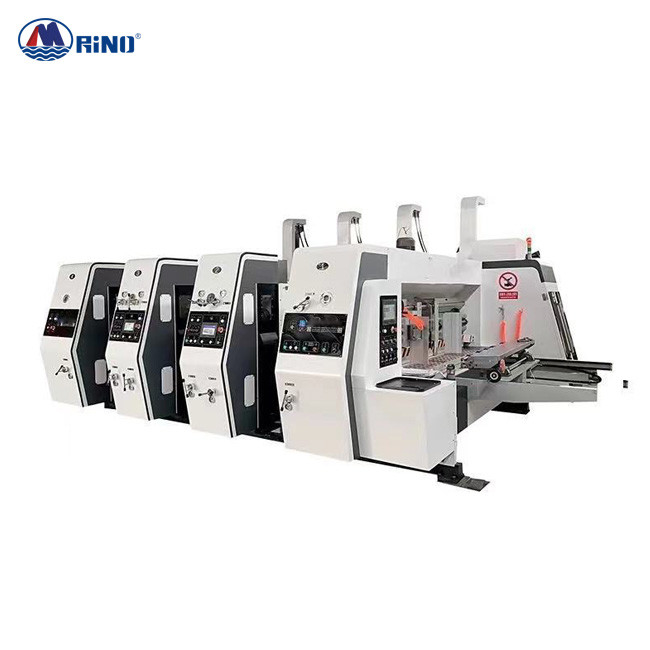

RINO Carton Box Flexo Printing Machine With Die Cutter 0

Paper feeding unit
The left and right baffle of the cardboard adopt the electric adjustment distance, which can be electrically controlled in the same way as the left and right according to the contract or separately controlled. The cardboard tractor adopts electric front and back adjustment to adapt to the width of the cardboard. The front baffle is manually synchronized lifting, which is simple, reliable and easy to operate.

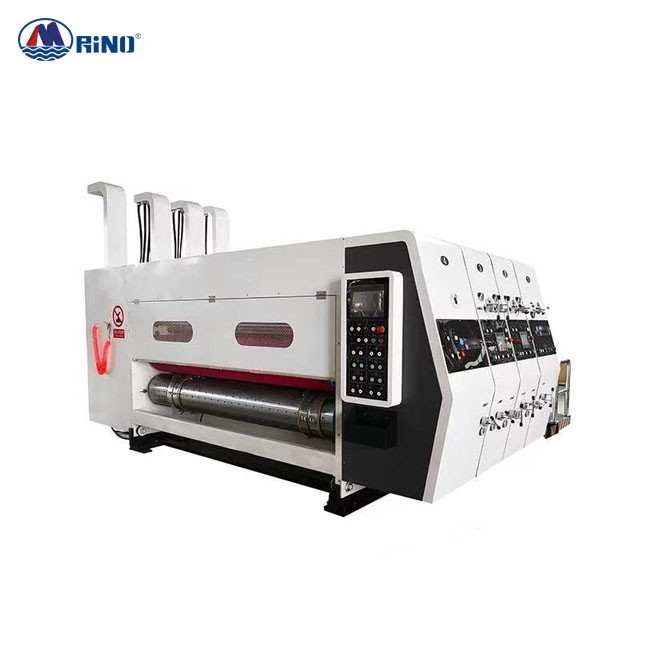

RINO Carton Box Flexo Printing Machine With Die Cutter 1

Printing unit
Diameter of printing roller ¢396mm( ¢410mm with plate). Made of high-quality steel, the surface is finely ground, hard chrome plated, dynamic balance correction runs smoothly, and is suitable for high-speed printing. The roller is engraved with reference marks in the horizontal and circumferential directions, which is convenient for hanging and matching printing plate. The ratchet-wheeled fixed plate reel with plate hanging groove is suitable for quick plate change. The horizontal distance adjusted of the printing plate roller is 6mm electric adjustment, the effective adjustment range: 12mm, the printing plate can be corrected when running and stopping.

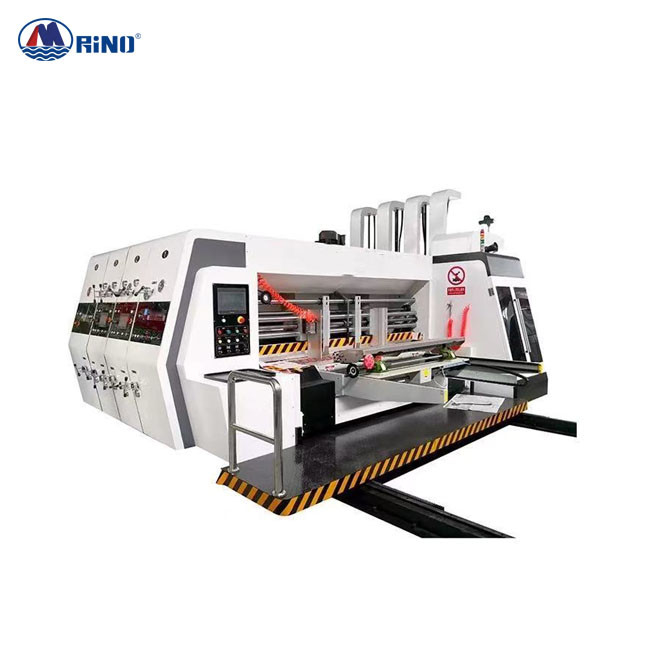

RINO Carton Box Flexo Printing Machine With Die Cutter 3
