Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||

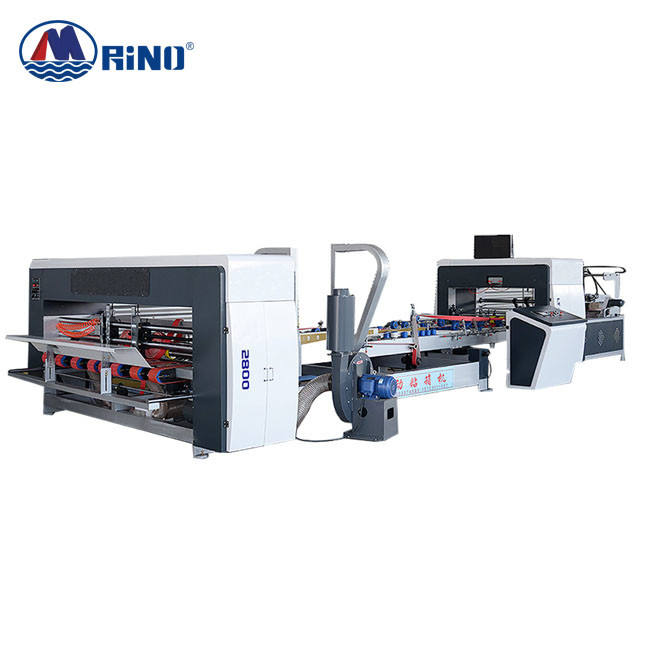

| Name: | Best 2800 Corrugated Automatic Carton Folder Gluer Machine Manufacturer | Model: | HF-GA2800 |
|---|---|---|---|
| Maximum Cardboard Size: | 2800×1200mm | Minimum Board Size: | 440×170mm |
| Power: | 12kw | Diemension Of Machine: | 15000*4600mm |
| Voltage Supply: | 380V/220V | Function: | Corrugated Cardboard Carton Box Pasting Gluing |
| High Light: | PLC Carton Folder Gluer Machine,PLC Automatic Carton Folder Gluer Machine,Corrugated Automatic Carton Folder Gluer Machine |
||
Product Description
The automatic box gluer is composed of three parts: a vacuum paper feeding part, a glue folding part and a counting accumulation output part. Digital display control, PLC computer amplitude modulation, simple, fast, reliable and accurate control mode. Automatic paper feeding, automatic glue folding, automatic counting, automatic stacking output, remote control within 100 meters to realize the remote host start and stop, host acceleration and deceleration, fan start and stop, paper feed start and stop, emergency stop, left and right arm adjustment, gluing Box adjustment, the average glue box speed is 150 m/min, high-speed energy saving, and labor cost saving.
| Model |
HF-GA2200 |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2200 | 440-2400 | 440-2600 | 440-2800 |
| Size C(mm) | 130-840 | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4000×15000 | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2200×1100 | 2400×1100 | 2600×1100 | 2800×1200 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 | 440×170 |
|
|
Paper Feeding Unit
1. Linked with the folding part, frequency conversion speed regulation, paper feeding speed 0-150m/min.
|
|
|
Paper folding unit
1. The folding part is equipped with a cardboard correction device and an indentation correction device. 2. The folding part has two rows of adjustable inner positioning guide wheel system, which has higher forming accuracy. 3. Folding speed 0-150m/min.
|
|
|
Stacking unit
1. Use belt to transport cartons, stack neatly, speed 0-130m/min 2. Use the flap board to hit the carton, which has the function of correcting deviation, and the deviation is small.
|
| 1 Bearing | HRB | Some |
| 2 Frequency converter | Delta,Taiwan | Whole |
| 3 PLC | Delta,Taiwan | Whole |
| 4 Contactor | Schneider France | Whole |
| 5 Touch Screen | MCGS | Whole |
| 6 Remote control | Telecrane,Taiwan | Whole |
| 7 Counting photoelectric | Omron Japan | Whole |
| 8 Main Motor | Huaxing, shenyang | Two Sets |
