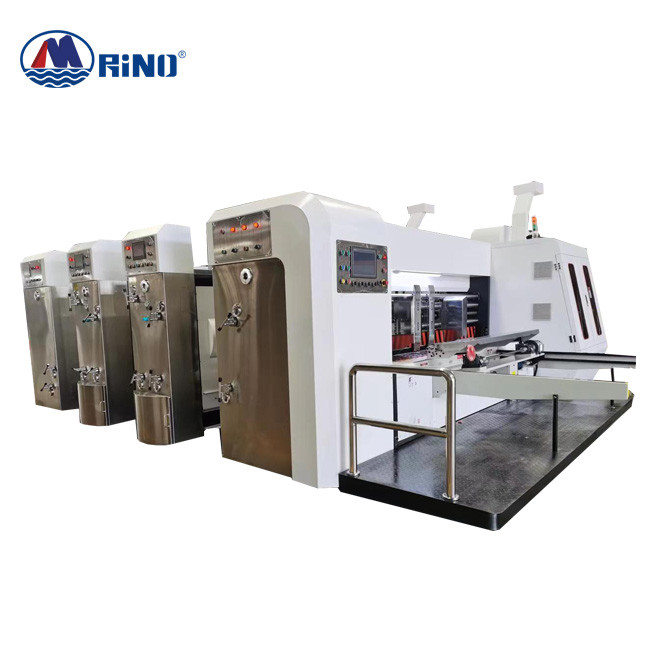

Carton Box 2 Color Corrugated Flexo Printing Machine With Slotting Die Cutting

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM920
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Carton Box Two Color Corrugated Flexo Printing Machine With Slotting Die Cutting Grade: Automatic
Weight: 16 T Voltage: 220V/380V
Die Cutting Precision: ±1.5mm Tinted Precision: ±0.5mm
Total Power: 42KW Design Speed: 180Pcs/Min
Wallboard Thickness: 50mm Gear Thickness: 50mm
High Light:

Corrugated Flexo Printing Machine 2 Color


Auto Corrugated Flexo Printing Machine


Corrugated 2 Colour Flexo Printing Machine

Product Description

Carton Box Two Color Corrugated Flexo Printing Machine With Slotting Die Cutting​



Box Flexo Printing Machine Introduction


This equipment can complete multiple processes such as multi-color printing, creasing, slotting, trimming, corner cutting, die cutting, and punching of cardboard at one time. The equipment adopts lead edge adsorption paper feeding, the host and fan frequency converter control the start and stop, the high-power dust removal fan cleans the surface of the cardboard, the main touch screen and side touch screen adopts the PLC programming system to control the various parts , and realize the human-machine interface to control the operation of each part . The printing accuracy of this machine can be adjusted from the paper feeding , operation and paper receiving direction.


Parameter of Carton Flexo Printing Machine


Model HP-LD920
Width 2500mm
Maximum speed(pcs/min) 180
Wallboard thickness(mm) 50
Gear thickness(mm) 50
Maximum paper size(mm) 920*2200
Minimum paper size(mm) 300*650
Maximum printing size(mm) 900*2200
Standard printing plate thickness(mm) 3.2---7.2
Cardboard thickness(mm) 3---12
Precision(mm) Tinted accuracy ±0.5, Slotting, die cutting accuracy ±1.5
Power (kw) 35
Total power(kw) 42


Main units

Carton Box 2 Color Corrugated Flexo Printing Machine With Slotting Die Cutting 0

Paper feeding unit


The lead edge paper feeding including standard type: suitable for various corrugated board , the system performance is stable, the paper feeding accuracy is high, adopts the vacuum negative pressure suction flat paper feeding method, to ensure high-speed and accurate paper feeding. (Optional additional price) "Light pressure" type: It can reduce the friction between the cardboard and the paper feeding table, and reduce the damage to the cardboard . Its characteristics is to protect the original corrugated board strength and reduce the injury of the elastic paper feeding rubber shaft mechanism on the cardboard, is conducive to smooth transfer of cardboard after touching the line. Reduce conveying congestion, save cardboard and reduce paper production time. It can feed E-flute (thin) horizontal corrugated paper, curved and lower quality cardboard.


Carton Box 2 Color Corrugated Flexo Printing Machine With Slotting Die Cutting 1

Printing unit


Diameter of printing roller ¢296mm( ¢310mm including plate). Made of high-quality steel, the surface is finely ground, hard chrome plated, dynamic balance correction runs smoothly, and is suitable for high-speed printing. The roller is engraved with reference marks in the horizontal and circumferential directions, which is convenient for hanging and matching printing plate. The ratchet-wheeled fixed plate reel with plate hanging groove is suitable for quick plate change. The horizontal distance adjusted of the printing plate roller is 6mm electric adjustment, the effective adjustment range: 12mm, the printing plate can be corrected when running and stopping.


Carton Box 2 Color Corrugated Flexo Printing Machine With Slotting Die Cutting 2

Slotting Unit


The single-axis double-knife slotting structure, the box height adopts the internal tooth structure, so that the lubricating oil is not easy to contaminate the carton. The slotting unit is equipped with an emergency stop device to ensure safety and is equipped with forward and reverse jogging of the whole machine, which is convenient and flexible to operate.







1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
