Rino Packaging Machinery Co., Ltd

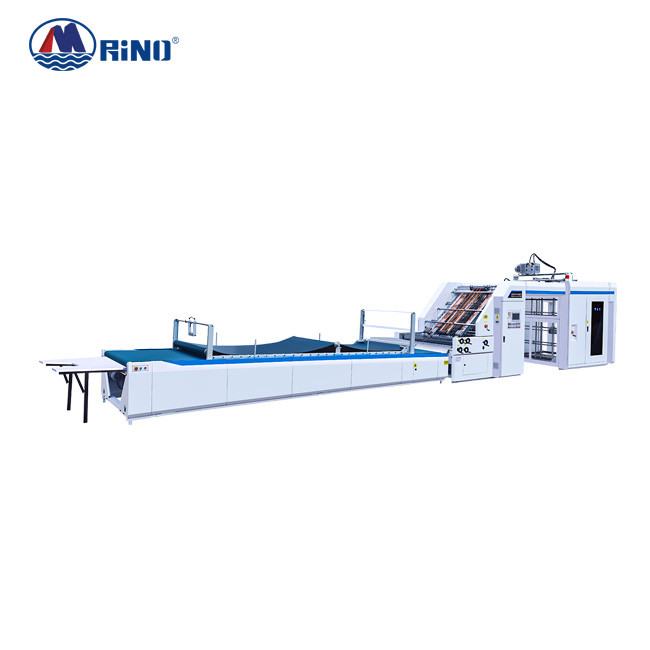

Ultra Speed Flute Laminating Machine 1450x1450mm 12000 Pcs/H

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HF-H1450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Ultra Speed Flute Laminating Machine Laminator Machine 1450*1450mm 12000 Pcs/H Maximum Paperboard Size: 1450*1450mm
Minimum Paperboard Size: 450*450mm Maximum Speed: 12000 Pcs/H
Overall Dimension: 13500Lx2450Wx2600H Total Weight: 6.5T
Total Power: 22KW Laminate Precision (mm): ≤±1.5
High Light:

Ultra Speed Flute Laminator Machine


Ultra Speed Flute Laminating Machine


Flute Laminating Machine 12000 Pcs/H

Product Description

Ultra Speed Flute Laminating Machine Laminator Machine 1450*1450mm 12000 Pcs/H

Flute Laminatng Machine Introduction

This series of automatic paper laminating machine is the latest design model, which has the advantages of high speed, convenient operation, reliable work, convenient maintenance, low noise and high precision. It will provide customers with better and more reliable equipment and help you obtain competitive quality in the market.

main feature:
1. Computer high-speed lamination, up to 150m/min. Depends on the quality of the cardboard.
2. The feeding unit adopts E-type lifting plate, which can push the plate into place by hydraulic jack. Optional guide rail with pre-stacking device.
3. The high-strength feeder ensures smooth running at high speed and no paper leakage.
4. The sensor compensation alignment device adopts multiple sets of sensors to sense the relative position of the running corrugated board, so that the left and right servo motors of the top paper are independently driven to achieve high-precision alignment and high speed of the top paper and the corrugated paper.
5. Full-function electronic control system, touch screen and PLC program automatically monitor the working status, which is convenient for troubleshooting. Electrical design conforms to CE standard.
6. The gluing unit adopts a high-precision coating wheel and cooperates with a specially designed metering roller to improve the uniformity of gluing. The unique gluing wheel with glue stop device and automatic glue level control system ensures that the backflow does not overflow glue.
7. The machine frame is processed by CNC lathe at one time to ensure the accuracy of each position. Toothed belts for conveying ensure smooth operation and low noise. The motors and spare parts are made of Chinese famous brand products, with high efficiency, few failures and long service life.
8. The corrugated cardboard feeding unit adopts a powerful servo motor control system, which has the characteristics of high sensitivity and high speed. The suction device adopts high-pressure fan, SMC large flow control valve and unique dust filter box, which enhances the suction force for different corrugated paper and ensures smooth operation, no double or multiple sheets, and no missing sheets.
9. Automatic glue supply system: This machine adopts imported liquid level controller to supply glue. When the glue is insufficient, the paper feeder is automatically stopped to avoid paper waste.

Main Parameter







Maximum size(mm) 1450*1450 1650*1650 1900*1650


Minimum size(mm) 450*450 450*450 450*500 450*500
Top feeding paper thickness 200g/m2-500g/m2 200g/m2-500g/m2 200g/m2-500g/m2 200g/m2-500g/m2
Bottom feeding paper thickness 0.5~10mm 0.5~10mm 0.5~10mm 0.5~10mm
Laminate precision (mm) ≤±1.5 ≤±1.5 ≤±1.5 ≤±1.5





Overall dimension





Total weight(t)


7.5 8.5 9.5
Total power 22KW 23KW 25KW 25KW

Main Units

Ultra Speed Flute Laminating Machine 1450x1450mm 12000 Pcs/H 0

Top paper feeding unit
4 suckers for picking up paper and 4 suckers for conveying paper to ensure stable and fast paper feeding.

Ultra Speed Flute Laminating Machine 1450x1450mm 12000 Pcs/H 1

Bottom paper feeding unit
Imported brand belt, good suction ability for the bottom sheet feeding.The bottom paper feeding adopts a widened and elongated bottom paper feeding belt, which is stable in paper feeding with Yaskawa servo control system, and the paper is fed with stability and precision with high-power suction fan. Each belt is tightened separately, (others have been changed to overall tightening in order to reduce costs).

Our Factory
Ultra Speed Flute Laminating Machine 1450x1450mm 12000 Pcs/H 2
