Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HSF-F 1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | 2 Ply Corrugated Board Production Line , 280mm High Speed Fingerless Type Single Facer 2 Ply Corrugated Board Production Line , 280mm High Speed Fingerless Type Single Facer | Maximum Machine Speed: | 100m/min |
|---|---|---|---|
| Economic Speed: | 80m/min | Max. Working Width: | 1600mm |
| Steam Temperature: | 160—210 Centigrade | Power Requirements: | 380V, 50Hz |
| Diameter Of Press Roller: | 320mm | Diameter Of Corrugated Roller: | 280mm |
| High Light: | 2 Ply Corrugated Board Production Line,280mm Corrugated Board Production Line,Fingerless Corrugated Board Production Line |
||
Product Description

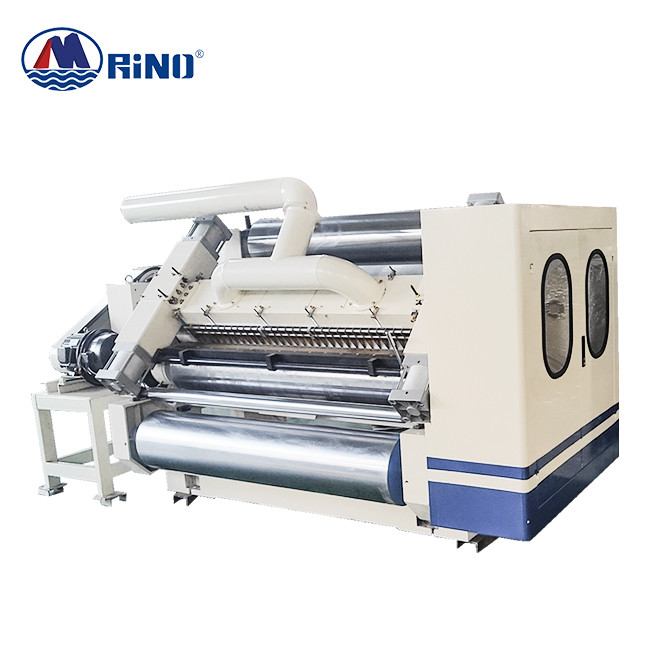

2 Ply Corrugated Board Production Line , 280mm High Speed Fingerless Type Single Facer
Introduction of Single Facer Corrugated Machine
The single facer machine is corrugated board forming machine. First, the corrugated core paper is heated, and then the corrugated roll is used to make the required corrugated shape. The corrugated paper is bonded to form a single-sided corrugated board. The heating methods of the core paper include steam heating, electric heating and oil heating.
Single Facer Corrugated Machine Parameter
| Max. machine speed | 100m/min |
| Economic speed | 80m/min |
| Max. working width | 1600mm |
| Steam temperature | 160—210 centigrade |
| Power requirements: | 380V, 50Hz |
| Diameter of corrugated roller | 280mm |
| Diameter of Press roller . | 320mm. |
| Diameter of preheater roller | 300mm |
| Diameter of Glue roller | 215mm |
| Diameter of doctor roller | 105mm |
Machine Details
* Design speed: 100m/min.
* Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
* corrugating roller: Dia.280mm with a drum.
* Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
* Gluing roller: surface is embossed with netting design and chrome plated.
* Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
* With preheating and preconditioning rollers.
