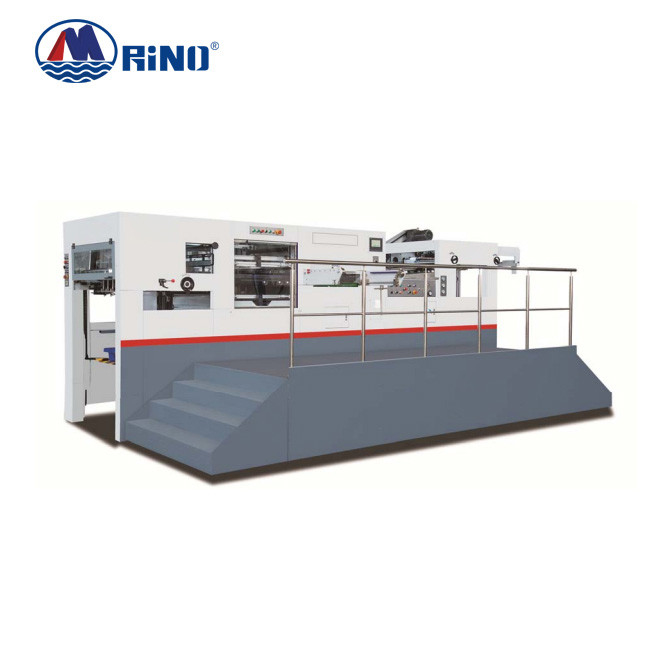

7500 Sheet/H Carton Box Die Cutting Machine Automatic Stripping

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-F1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 7500 Sheet/H Carton Box Automatic Platen Die Cutting And Stripping Machine Maximum Cardboard Size: 1070x790mm
Minimum Cardboard Size: 450x360mm Maximum Speed: 7500 Sheets/h
Total Weight: 17T Total Power: 21KW
Vlotage: 220V/380V Max Die Cutting Size: 1060x780mm
High Light:

7500 Sheet/H Carton Box Stripping Machine

,

Carton Box Die Cutting Machine Automatic

,

7500 Sheet/H Cardboard Die Cutting Machine

Product Description

7500 Sheet/H Carton Box Automatic Platen Die Cutting And Stripping Machine



Carton Box Die Cutting Machine Introduction



1. 4 sucking and 5 forwarding strong power nozzle can be adjusted according to the curve of paper

2. Air valve adopts hard alloy material.

3. Super power feeder can work with 2000gsm cardboard and 4.5mm corrugated paperboard easily;

4. Adopt lower feeding method, the max. Speed can be 125 S/M;

5. Independent preloading unit allows the worker to maintain working pile freely when stacking on preload pallet.

6. Adjustable side blowers, electromechanical double-sheet inspection mechanism can improve the double sheets effectively;

7. Double circuit power-off protection to prevent feeder from accidental crash, stable and reliable; ·Push and Pull Two-way Side lay

8. Before paper arrive at front lays, speed lower function.





Parameter of Die Cutting Machine



Model HD-F1060
Max. Sheet Size 1070x790mm
Min. Sheet Size 450x360mm
Min. Front Margin 5mm
Max. Die Cutting Size 1060x780mm
Max. Die Cutting Pressure 250T
Paperboard Specification 100 ~ 2000 g/m² Corrugated ≤ 4.5mm
Max. Speed 7500 sheet/h
Max. Height of Feeding Pile 1380mm (1630mm is optional)
Max. Height of Delivery Pile 1100mm (1350mm is optional)
Die Cutting Precision ±0.1mm
Main Motor 11 Kw
Total Power 21Kw
Machine Weight 17T



Main Units



7500 Sheet/H Carton Box Die Cutting Machine Automatic Stripping 0

Feeder feeding unit



Super power feeder can work with 2000gsm cardboard and 4.5mm corrugated paperboard easily;



7500 Sheet/H Carton Box Die Cutting Machine Automatic Stripping 1

Die cutting unit



Turbine crank drives the elbow-type high-precision die-cutting upper workbench;

Fixed high-precision die-cutting lower workbench;

The main parts of the core unit (crankshaft, worm, worm gear, toggle shaft) are imported high-grade alloy steel;









Finished Products
7500 Sheet/H Carton Box Die Cutting Machine Automatic Stripping 2
Machine details



7500 Sheet/H Carton Box Die Cutting Machine Automatic Stripping 3
