Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GD2300 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | 2 Pieces Carton Box Gluer Machine Double Pieces Cardboard Gluing | Maximum Paperboard Size: | 1150×1060mm |
|---|---|---|---|
| Minimum Paperboard Size: | 450×260mm | Maximum Height Of Stacking: | 400mm |
| Maximum Speed: | 3000 Pieces/hour | Machine Power: | 11 Kw |
| Total Weight: | 2.4 Ton | Overall Dimensions Size: | 3000×3050 ×1460mm |
| High Light: | 3000 Pieces/Hour Cardboard Gluing Machine,2 Pieces Cardboard Gluing Machine,3000 Pieces/Hour carton folder gluer |
||
Product Description

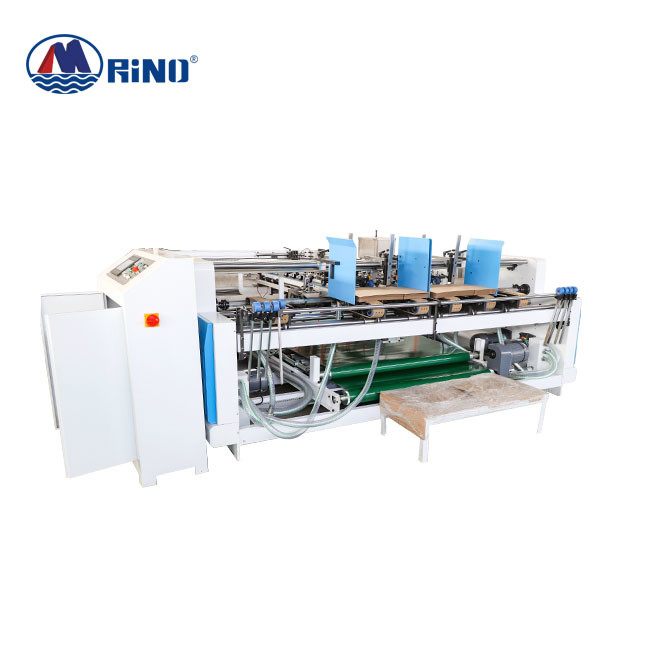

2 Pieces Carton Box Gluer Machine Double Pieces Cardboard Gluing
Carton Box Gluer Machine Introduction
This machine is specially used to glue AB paper (2 sheets of corrugated paper or cardboard) into a carton. The current production methods of AB carton: 1. Traditional manual gluing and gluing. 2. Old fashioned folder and glue then paste by hand. The above two methods are labor-intensive, low-efficiency, and difficult to control the pasting accuracy and quality. 3. AB paper folder gluer and folder gluer solve the above problems with advanced working methods.
Parameter of Carton Box Gluer Machine
| Model | HF-GD2300 |
| Maximum Size |
1150×1060mm |
| Minimum size |
450×260mm |
|
Applicable |
A-E 3/5ply corrugated board |
| Maximum speed |
0-3000 pieces/hour |
| Total power | 11 kw |
| Weight | 2 .4 TON |
| Dimensions |
3000×3050 |
Carton Box Gluer Machine Detail
Main parts list
| PARTS NAME | BRAND |
| FEEDING MOTOR | ZHONGDA (ZD CHINA) |
| FEEDING PUMP | NAXIDE (CHINA ) |
| LINEAR GUIDEWAY | KOREA IMPORTED |
| GUIDE SCREW | HIWIN TAIWAN |
| SOLENOID VALVE | AIRTAC TAIWAN |
| INVERTER | TAIWAN DELTA |
| SERVO MOTOR | DELTA TAIWAN |
| HUMAN MACHINE INTERFACE | TAIWAN DELTA |
| POWER | TAIWAN DELTA |
| PROGRAM CONTROLLER | TAIWAN DELTA |
| FASTENERS | TAIWAN JINYI, PENGCHI, |
| RELAY | JAPAN IMPORTED |
| BUTTON | SCHNEIDER |
| PAPER FEED BELT | TAIWAN IMPORTED |
| EXCITED PAPER FEEDING BELT | TAIWAN IMPORTED |
| BEARING | RENBEN NSK.HRB |
| PROXIMITY SWITCH | XINLING |
| THERMOSTAT | XINLING |
| GLUING MOTOR | CHINA |
| FORWARD PAPER ALUMINUM PLATE | CHINA |
| TIMING BELT | IMPORTED |
| CLUTCH | CHINA |
Packing&Shipping
