Rino Packaging Machinery Co., Ltd

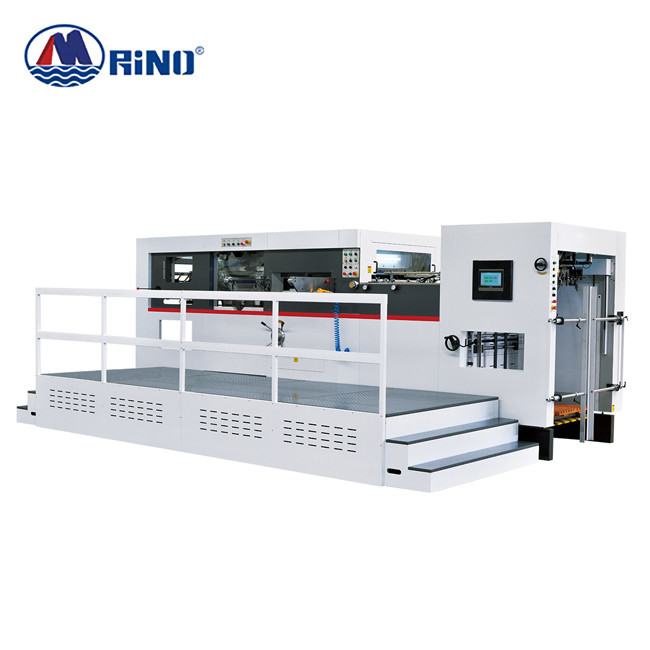

Feeder Feeding Carton Box Die Cutting Machine With Stripping

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-F1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Feeder Feeding Carton Box Die Cutting Machine With Stripping Max Cardboard Feeding Size: 1060×760mm
Min Feeding Cardboard Size: 400×370mm Max Die Cutting Size: 1060*760mm
Weight: 14.5T Max Die Cutting Speed: 7000 Sheets/h
Total Power: 18KW
High Light:

Stripping Carton Box Die Cutting Machine


Carton Box Die Cutting Machine 18KW


Feeding Carton Box Die Cutting Machine

Product Description

Feeder Feeding Carton Box Die Cutting Machine With Stripping



Carton Box Die Cutting Machine Introduction


The full-automatic die-cutting machine can process paper, cardboard and corrugated paper, and is suitable for die-cutting indentation of paper boxes, cartons, paper trademarks, etc. In particular, all kinds of high-end and exquisite printed materials (such as cigarette boxes, wine boxes, gift boxes, cosmetic boxes, etc.) can be die-cut and indented on this machine to obtain exquisite and beautiful packaging products.


Parameter of Die Cutting Machine




Max cardboard feeding size

Min feeding cardboard size 400×370mm
Max die cutting size 1060×760mm
Max die cutting pressure 300T
Cardboard thickness Die-cutting and embossing flat corrugated paper, suitable for die-cutting, embossing and cold embossing of cartons, paper trademarks, PVC films, cardboard 0.1-2.5mm, corrugated paper ≤ 4mm
Max die cutting speed 7000 sheets/h
Weight 14.5T
Total power 18KW



Main Units


Feeder Feeding Carton Box Die Cutting Machine With Stripping 0

Paper feeding unit


The improved paper feeding device makes the adjustment of the paper feeding easier and faster.

The paper feeding head with four suction and four feeds with 8 suction nozzles has strong suction force and stable paper feeding function. The suction nozzle can adjust the angle and suction air volume according to the deformation of the paper to realize the smooth conversion between thin paper and thick paper.

The main and auxiliary paper feeding mechanism realizes continuous paper feeding without stopping the machine.

Large-screen human-machine interface, PLC program control input and output points and moving platform monitoring of obstacles, fast and accurate troubleshooting, the operation is very simple.


Feeder Feeding Carton Box Die Cutting Machine With Stripping 1

Paper receiving unit


Sectional adjustable brush and paper flattening and blowing device to stabilize the finished product in the delivery section. Paper delivery and air blowing device, delivery of paper is smooth and tidy.

The paper-receiving mechanism and auxiliary paper-receiving mechanism can be changed quickly, effectively saving labor.


Feeder Feeding Carton Box Die Cutting Machine With Stripping 2

Stripping unit


The upper, middle and lower three frame quick clamping devices and the use of a central positioning system (interchangeable and compatible international standard molds) are easy to change the plate.

The front cleaning function adopts the central positioning system to remove the paper edge in the machine at one time.

The bottom stripping frame adopts the stripping needle method, which is universal and convenient for customers to replace.

Three-frame waste removal takes into account the cardboard and corrugated paper. The waste removal frame is placed horizontally, which is convenient for debugging personnel to adjust outside the machine and ensure personal safety to the greatest extent.




Main Electrical device


Name Model Brand
Breaker 3P040 LG
Breaker 3PD16 LG
Breaker 2PD16 LG
Breaker 1PD6 LG
Air switch NSC60E3060N Schneider
PLC programmable controller CP1W-M60DT-D Omron
Expand CP1W-40EDT Omron
Expand CP1W-20EDT Omron
Communication card CP1W-CIF11 Omron
AC contactor LC1D32 Schneider
AC contactor LC1D12 Schneider
AC contactor LC1D09 Schneider
AC contactor LC1D50 Schneider
Switching power supply DR-120-24 MIWE
Transformer 380V-220V 670V TENGEN
Swim suppressor LAD4RCU Schneider
Interlock connector LAD9R1V Schneider
Finished Products
Feeder Feeding Carton Box Die Cutting Machine With Stripping 3
Machine details


Feeder Feeding Carton Box Die Cutting Machine With Stripping 4
