200Pcs/Min Carton Box Flexo Printing Machine 2 Color Lead Edge Feeding

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HP-LM1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 2 Color Carton Box Flexo Printing Machine Lead Edge Feeding With Die Cutter Slotter Grade: Automatic Type
Wallboard Thickness: 60mm Gear Thickness: 60mm
Slotting Accuracy: ±1.5mm Tinted Accuracy: ±0.5mm
Maximum Paper Size: 1200 X 2600mm Maximum Speed: 200Pcs/Min
Weight: 15TON
High Light:

200Pcs/Min Carton Box Flexo Printing Machine

,

Lead Edge Feeding Flexo Printer

,

Carton Box Flexo Printer 2 Color

Product Description

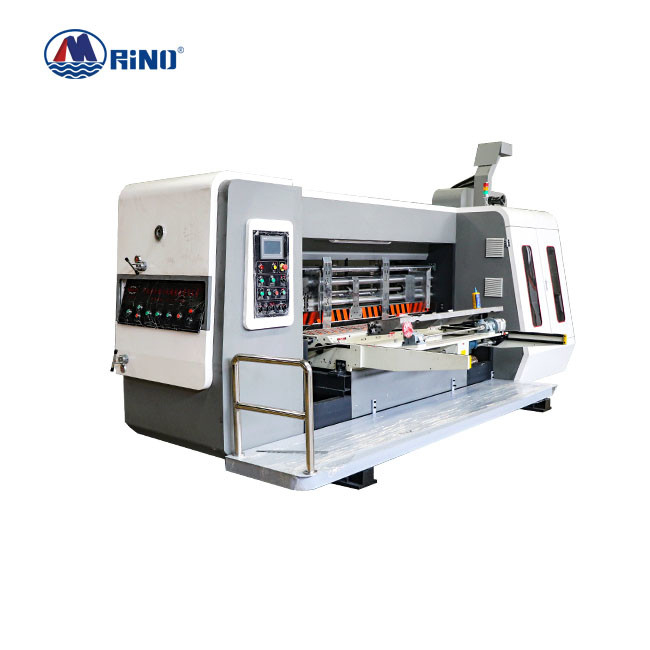

200Pcs/Min 2 Color Carton Box Flexo Printing Machine Lead Edge Feeding With Die Cutter Slotter

Box Flexo Printing Machine Introduction

The equipment adopts lead edge adsorption paper feeding. The main engine and fan inverter control the start and stop. The high-power dust removal fan cleans the surface of the cardboard. The main touch screen and side touch screen use the PLC programming system to control each part, and realize the man-machine interface to control the operation of each part. The printing accuracy of this machine can be adjusted from the paper feeding, running, and receiving directions.


Parameter of Carton Flexo Printing Machine



Model HP-LM1200
Width 3000mm
Maximum speed(pcs/min) 180
Wallboard thickness(mm) 60
Gear thickness(mm) 60
Maximum paper size(mm) 1200 X 2600
Minimum paper size(mm) 350 X 650
Maximum printing size(mm) 1200X2400
Standard printing plate thickness(mm) 3.2---7.2
Cardboard thickness(mm) 3---12
Precision(mm) Tinted accuracy ±0.5,die cutting accuracy ±1.5
Power (kw) 26



Main units

200Pcs/Min Carton Box Flexo Printing Machine 2 Color Lead Edge Feeding 0

Paper feeding unit

The lower roller of the paper feeding roller is made of high-quality seamless steel tube, which are finely grounded, pressed horizontally and electroplated to increase the friction of the cardboard. The rubber paper feeding roller are encapsulated in two layers, the inner layer is 28 degrees, which increases the elasticity of the friction rubber shaft, and the outer layer is 45 degrees, which increases the wear resistance.


200Pcs/Min Carton Box Flexo Printing Machine 2 Color Lead Edge Feeding 1

Printing unit

Use high-quality seamless steel tube to refine processing diameter is 175mm, dynamic and static balance correction, stable operation. Quenching and tempering, hot loading, dynamic and static balance, surface fine grinding, electroplating.




Packaging&shipping

200Pcs/Min Carton Box Flexo Printing Machine 2 Color Lead Edge Feeding 2

FAQ

1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
