Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LD1728 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 2 Color Carton Box Flexo Printer Machine With Die Cutter For Corrugated Board | Grade: | Automatic |
|---|---|---|---|
| Wallboard Thickness: | 50mm | Gear Thickness: | 50mm |
| Die Cutting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Maximum Paper Size: | 1728 X 2800mm | Working Speed: | 120Pcs/Min |
| Weight: | 15000KG | ||
| High Light: | 120Pcs/Min Carton Box Flexo Printer,Two Color Carton Box Flexo Printer,Corrugated Board Flexo Printer |
||
Product Description

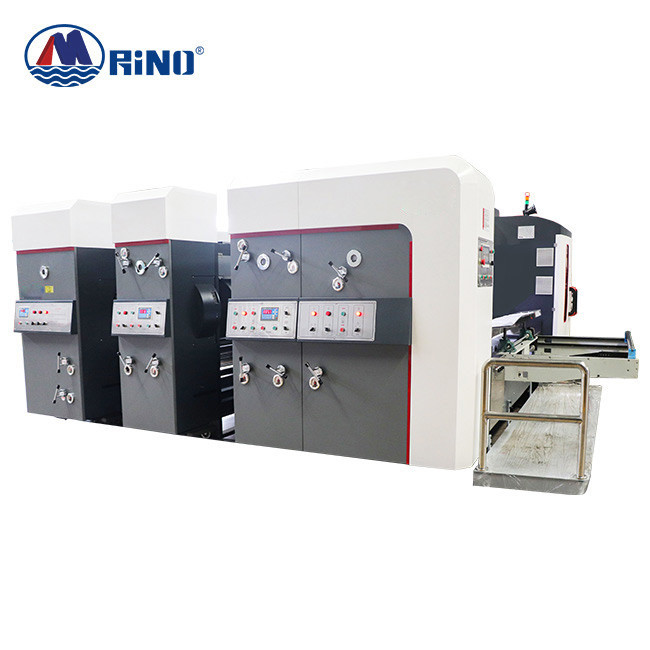

120Pcs/Min 2 Color Carton Box Flexo Printer Machine With Die Cutter For Corrugated Board
Box Flexo Printing Machine Introduction
All gear lubrication adopts spray-type circulating lubrication, The gear and the drive shaft are connected by a keyless coupling ring, which is firm and reliable. The machine has the characteristics of high degree of automation , accurate color registration, exquisite printing patterns, and high production efficiency.
Parameter of Carton Flexo Printing Machine
| Model | HP-LD1728 |
| Width | 3000mm |
| Maximum speed(pcs/min) | 180 |
| Wallboard thickness(mm) | 50 |
| Gear thickness(mm) | 50 |
| Maximum paper size(mm) | 1728 X 2800 |
| Minimum paper size(mm) | 400 X 650 |
| Maximum printing size(mm) | 1728X2600 |
| Standard printing plate thickness(mm) | 3.2---7.2 |
| Cardboard thickness(mm) | 3---12 |
| Precision(mm) | Tinted accuracy ±0.5,die cutting accuracy ±1.5 |
| Power (kw) | 26 |
Main units
|
|
Paper feeding unit
The suction fan auxiliary paper feeding, and the air volume can be adjusted in each section according to the size of the cardboard. The motor is a frequency converter controllable motor, which reduces power consumption and saves costs. The dust removal fan is with a powerful inverter controllable motor, equipped with multiple dust removal brushes to remove impurities on the surface of the cardboard and improve printing quality.
|
|
|
Printing unit
Made of high-quality steel, the surface is finely ground, hard chrome plated, dynamic balance correction runs smoothly, and is suitable for high-speed printing. The roller is engraved with reference marks in the horizontal and circumferential directions, which is convenient for hanging and matching printing plate. The ratchet-wheeled fixed plate reel with plate hanging groove is suitable for quick plate change. The horizontal distance adjusted of the printing plate roller is 6mm manual adjustment, the effective adjustment range: 12mm, the printing plate can be corrected when running and stopping.
|
|
|
Die Cutting Unit
The gap between the die roller and the rubber roller is adjusted electrically, and the air-locked fixed adjustment mechanism is stable and reliable. The rubber roller has a 50mm horizontal travel device and a speed difference compensation system. Each knife is in a different position and wears evenly, which effectively prolongs the service life of the rubber pad.
|
Packaging&shipping
FAQ
1. Q:What is the machine warranty?
A: one year.
2. Q:What is the production time while placing order?
A: About 20 days
3. Q:What is the delivery time?
A: 40-60 days after get the payment.
4. Q:Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q:Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q:Do you have machines in stock?
A: for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
