600 Nail/Min Carton Stitching Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HS -2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20-40 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Corrugated Box Two Pieces Stitching Machine Carton Packing Machine Maximum Cardboard(A+B)*2: 4000mm
Maximum Tongue Width: 100mm Nailing Distance Range: 30-120mm
Maximum Nailing Speed: 600 Nail/min Machine Weight: 2.5mt
Stitching Number: 2-99 Feeding Height Of Paper: 900mm
High Light:

600 Nail/Min Carton Stitching Machine

,

4000mm Carton Stitching Machine

Product Description

Corrugated Box Two Pieces Stitching Machine Carton Packing Machine



Cradboard Stitching Machine Features



1. Pressure electric adjustment of rubber wheel

2. Touch screen control box cover, box height, nail number, nail distance, convenient and fast change.

3. The Japanese Yaskawa double servo drive is accurate and the mechanical transmission is reduced, which can effectively reduce the failure rate of the machine.

4. Can nail single nail, double nail, strengthen nail [order in advance], can meet the different requirements of different customers.

5. Three ply, five ply, seven ply cardboard can be nailed [specified in advance at the time of ordering].

6. Change the carton size,[ box cover, box height, nail number, nail distance] only need one minute to complete, greatly save time, easy to operate.

7. The front paper feeding part automatically rises and falls, and the paper feeding table is equipped with photoelectric induction device to maintain the best feed height.

8. The back has the function of automatic counting, the finished product box can be sent to the end of the conveying machine according to the set quantity, which is convenient for packing and binding.


Cradboard Stitching Machine Parameter



Model HS-D2000
Max paper(A+B)*2(mm) 4000
Min paper(A+B)*2(mm) 1060
A Max carton length(mm) 2850
A Min carton lengt(mm) 350
BMax width(mm) 1000
B Min width(mm) 120
Max (C+D+C)paper height(mm) 2500
Min(C+D+C) paper height(mm) 400
C(mm) 560
C(mm) 50
DMax height(mm) 2000
DMin height(mm) 150
Max tongue width(mm) 45
Stitch distance 30-120
Stitch No 1-99
Speed (/min) 600
weight(T) 2.5

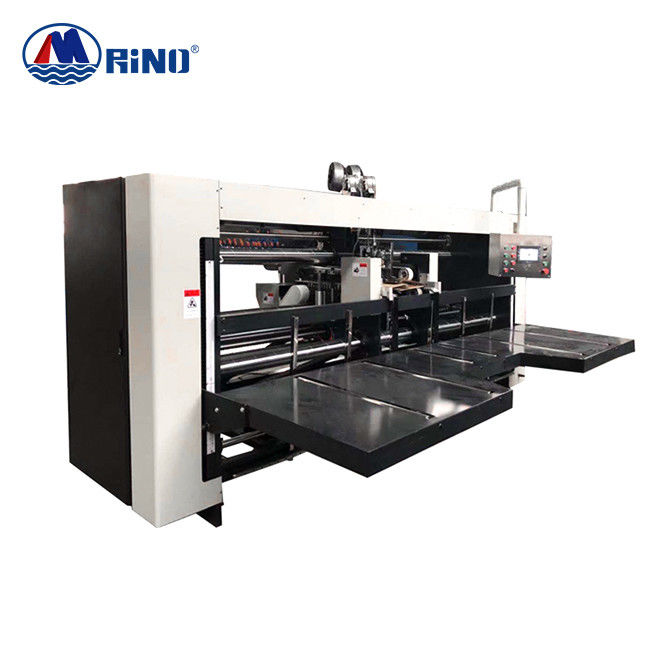

600 Nail/Min Carton Stitching Machine 0








Packaging&Shipping

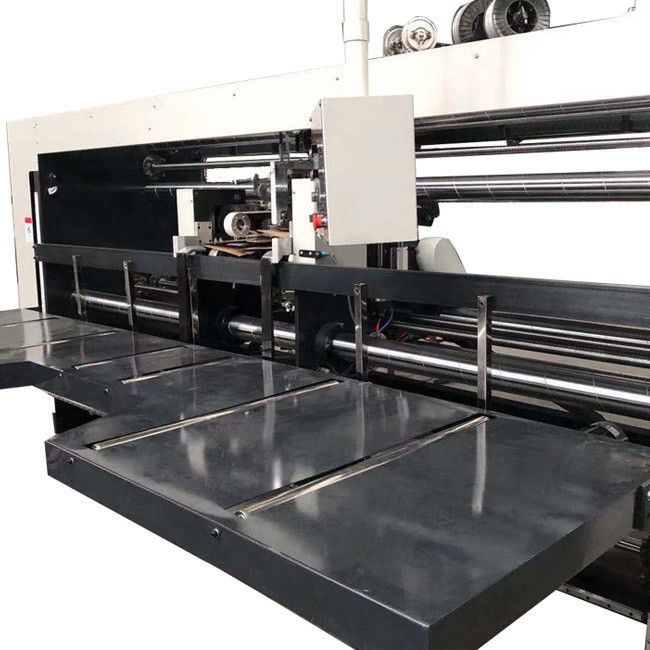

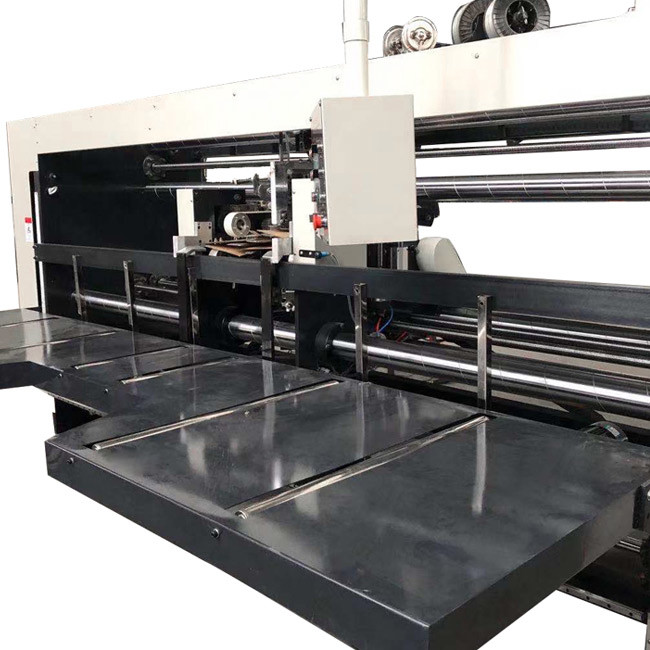

600 Nail/Min Carton Stitching Machine 1
