Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HP-LM1600 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Month |
Detail Information |
|||
Name: | Automatic 4 Color Cardboard Box Making Flexo Machine Carton Printing Slotting Machine | Grade: | Automatic |
---|---|---|---|
Weight: | 35000kgs | Voltage Consumption: | 220V/380V |
Slotting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
Total Power: | 35KW | Maximum Speed: | 150Pcs/Min |
High Light: | 380V Carton Box Flexo Printing Machine,220V Carton Box Flexo Printing Machine,CE Carton Printing Slotting Machine |
Product Description

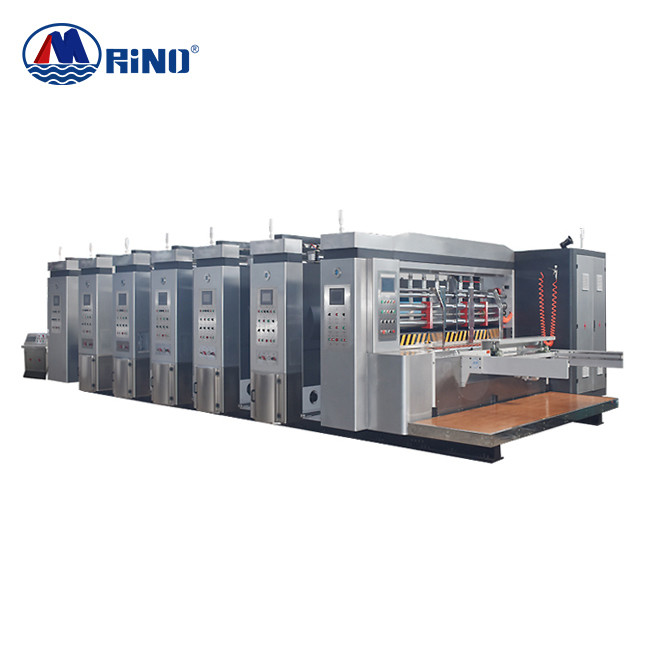

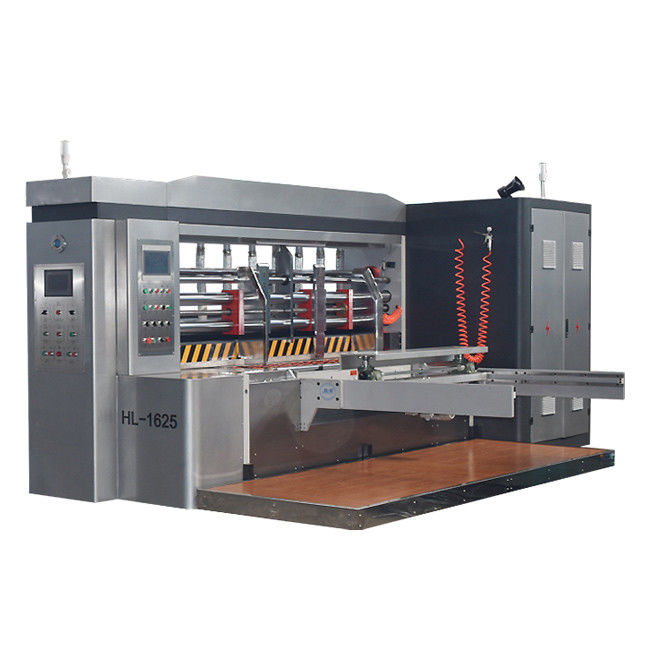

Automatic 4 Color Cardboard Box Making Flexo Machine Carton Printing Slotting Machine
Carton Box Flexo Printing Machine Introduction
1. Lead edge feeding system , vaccum adsorption transmission, suitable for all kinds of corrugated cardboard. Increase tissue paper board and bend cardboard transmission stability, high speed and precision.
2. Main motor. fan motor phase motor controlled by inverter, adjust speed smooth, save electricity, accurated and reliable.
3. High precision gear transmission, accurate and durable: 20CrMnTi high-frequency quenching, hardness HRC58-62, up to the national level 6 precision, use for a long time, high overprinting accuracy.
4. Total machine automatic reset zero system,storing common order, change order quickly, operation is convenient.
5. Main drive bearing Japan NSK, other bearing brands for domestic HRB, ensure the transmission stability.
6. Mechanical automatic uo oil lubrication system, equiped with automatic balancing device, increase the service life of gear.
Parameter of Carton Flexo Printing Machine
Width |
mm |
3000 |
Maximum Paper feeding size |
mm |
1600×2800 |
Effective printing size |
mm |
1600×2600 |
Minimum Paper feeding size |
mm |
400×650 |
Thickness of printing plate |
mm |
7.2 |
Design speed |
sheets/mi |
150 |
Economic speed |
sheets/mi |
120 |
Main motor |
KW |
15 |
Total power |
KW |
35 |
Weight |
T |
35 |
Tinted precision |
mm |
±0.5 |
Slotting precision |
mm |
±1.5 |
Main units
Paper feeding unit
Frequency conversion of suction can adjust the wind volume,and the wind pressure can be adjusted by the size of the paperboard,increase the thin board and the bend board convey stability and accurately. |
Printing unit
1. The printing roller and trace pressing roller adopt good quality without gap steel roller ,surface is treated by lapping finish, after balance correct and hard chrome plating, smooth operation.
|
