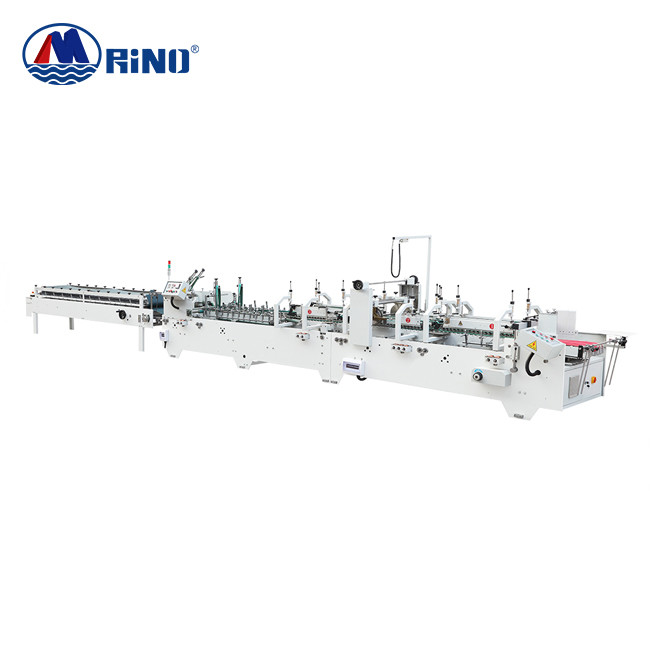

Name: 8KW Hot Melt High Speed Folding And Gluing Machine 3 Point CE Approval
Brand: RINO
SKU: HF-GBL800
Rating: 4.7 (129 reviews)

8KW Hot Melt High Speed Folding And Gluing Machine 3 Point CE Approval

Product Details:

Place of Origin:

China

Brand Name:

RINO

Certification:

Model Number:

HF-GBL800

Payment & Shipping Terms:

Minimum Order Quantity:

1 Set

Price:

Negotiation

Packaging Details:

Wrapped with film or in wooden case

Delivery Time:

40-60 Working Days After Deposit

Payment Terms:

L/C, T/T

Supply Ability:

10 Set/Month

Detail Information
Product Description

Detail Information
Name:	High Speed Folding And Gluing Machine Bottom Lock Box Three Point Folder Gluer Machine	Suitable Paperboard:	Card Board 200gsm-820gsm,F ,E ,B,C,A Flute
Maximum Speed:	400m/min	Overall Dimension:	950013001350mm
Weight:	3 Ton	Power Consumption:	8KW, 220V/380V,50HZ/60HZ
Usage:	Paperboard Pasting Gluing	Glue Type:	Hot Melt Glue
High Light:	Melt High Speed Folding And Gluing Machine , 8KW High Speed Folding And Gluing Machine , CE High Speed Folding And Gluing Machine

Product Description

High Speed Folding And Gluing Machine Bottom Lock Box Three Point Folder Gluer Machine

Folding And Gluing Machine Characteristics

Folder gluer is new kind of economic model equipment that the pre-folding and crash-lock is separate, with the features of high speed, reasonable mechanism structure and convenient for operation,

It is also suitable for making pharmaceutical box, cosmetic box, wine box making, etc.

Folding And Gluing Machine Parameter

MODEL: HF-GBL800

Box	A Max	A Min	B Max	B Min	C Min	D Min	F Min
Nornal box	700mm	110mm	620mm	110mm	8mm	70mm	51mm
Bottom lock box	700mm	160mm	520mm	180mm	9mm	90mm	85mm

8KW Hot Melt High Speed Folding And Gluing Machine 3 Point CE Approval 0

Main units

Paper feeding unit

1. Suction feeding belt ,more fast and stable.
2. Scalable paper stack at the back of the support for longer box.

Bottom locked unit

Other top electronic spray adhesive system configuration can choose according to the needs of aircraft configuration.

Pressing unit

Independent motor drive; (follow) manual and automatic operation mode.

Standard & Optional configuration list

	Configuration	Units	Standard	Optional
1	Feeder section		√
2	Paper Alignment Section		√
3	Pre-fold Section		√
4	Crash lock bottom section		√
5	Upper paste barrel equipment			√
6	Down pasting equipment(R+L)		√
7	Gluing system		√
8	Grinder device
9	Plasma treatment system		√
10	Folding and closing section		√
11	Trombone section		√
12	Press section		√
13	Table (one)		√
14	monitor		√
15	Double-sided adhesive			√

Finished Product

8KW Hot Melt High Speed Folding And Gluing Machine 3 Point CE Approval 4

8KW Hot Melt High Speed Folding And Gluing Machine 3 Point CE Approval 5
