Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-PPS850 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Maximum Paperboard Size: | 850×585mm | Minimum Paperboard Size: | 100*30mm |
|---|---|---|---|
| Working Table Hight: | 850mm | Packing Speed: | 50 Strap/min |
| Tension Range: | 0-45Kg | Applicable: | PP |
| Machine Dimensions: | 1420×633×1520mm | Power Supply: | 220V/50-60Hz |
| Name: | PP Wire Automatic Corrugated Carton Board Bunding Machinery Packing Machinery | ||
| High Light: | PP Wire Carton Strapping Machines,850×585mm Strapping Banding Machine,50 Strap/Min Strapping Banding Machine |
||
Product Description

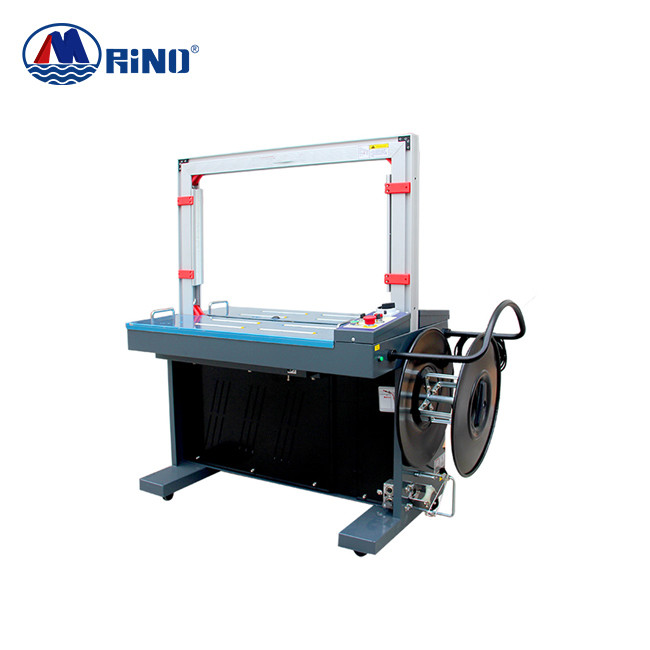

PP Wire Automatic Corrugated Carton Board Bunding Machinery Packing Machinery
Specifications of Corrugated Box Strapping Machine
1. This machine is specially designed for fully automatic strapping with dynamic roller on the workbench, which makes it suitable for use in a binding line for handling articles of different sizes and in irregular shapes ,it can realize complete unmanned,operation by joining a power transfer line /production line.
2. The size and weight of the article to be packed can be designed according to the customer’ss needs.
3. The drive unit is equipped with a dust cover and adopts a special design which enables silent yet powerful operation. The machine also has the automatic power off function , which in turn saves electric energy.
4. Style of binding :Single and multiple strip parallel binding ,free selection from 1 strip to 4strips via photoelectric control.
Specification of Strapping Machine
| Model |
HS-PPS850 |
| Electrical | 1PH,110V/220V,50HZ60HZ |
| Power consumption | 950W |
| Warm-up time | 180s |
| Strap width | 8-19mm(fix) |

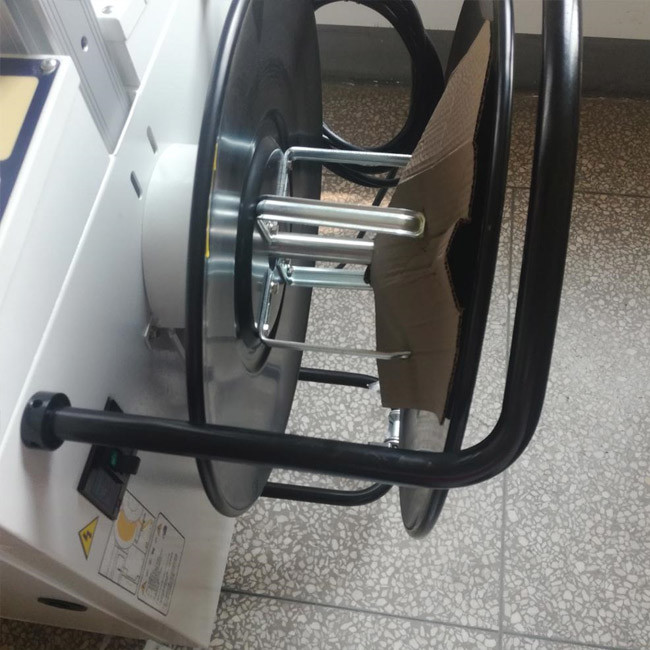

| PP strap paper coil I.D | 8’’(200mm) |
| Tension adjustment | 0-70kgs |
| Strapping speed | 2.4s/pcs (25pcs/min) |
| Arch | aluminum arch |
| Arch size | W:850×H:600mm |
| Min. strapping size | W:100×H:30mm |
| Max. strapping size | W:850×H:585mm |
| Working table height | 814mm |
| Machine dimension(L×W×H) | 1420×633×1520mm |
| Wooden size (L×W×H) |
Arch assembled 1476×689×1644mm arch disassembled 1476×829×999 |
| Machine weight | 280kgs |
