Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | RINO |
Certification: | CE |
Model Number: | HS-S2800 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 Set |
Price: | Negotiation |
Packaging Details: | Wrapped with film or in wooden case |
Delivery Time: | 40-60 Working Days After Deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 Set/Month |
Detail Information |
|||
Maximum Paper Size: | 2800*1500mm | Minimum Paper Size: | 660*330mm |
---|---|---|---|
Nail Distance: | 30-100mm | Maximum Speed: | 500-600 Nails/min |
Name: | Box Stapler Machine Semi Automatic Double Servo Single Piece Carton Stitching Machine | Power: | 6HP |
Nail Wire Model: | #17、#18 | Number Of Nails: | 1-99 |
High Light: | Single Piece Semi Automatic Stitching Machine,2800mm Semi Automatic Stitching Machine,Semi Automatic Stitching Machine For Corrugated Boxes |
Product Description

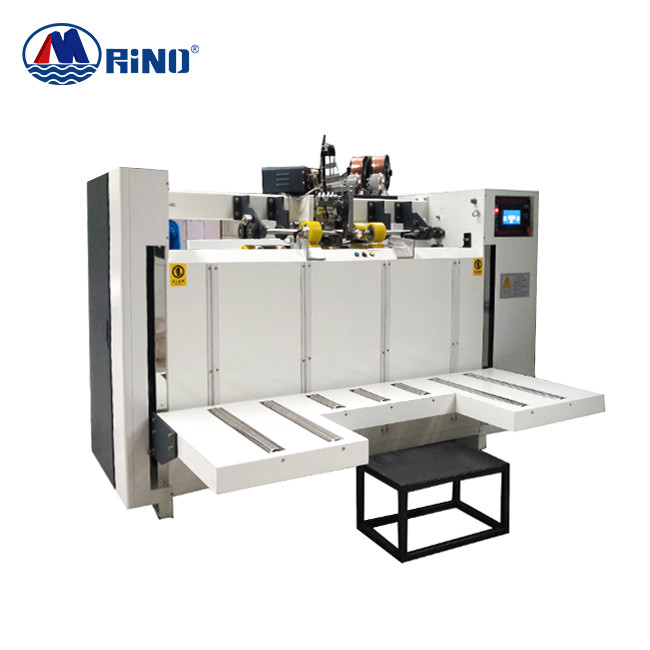

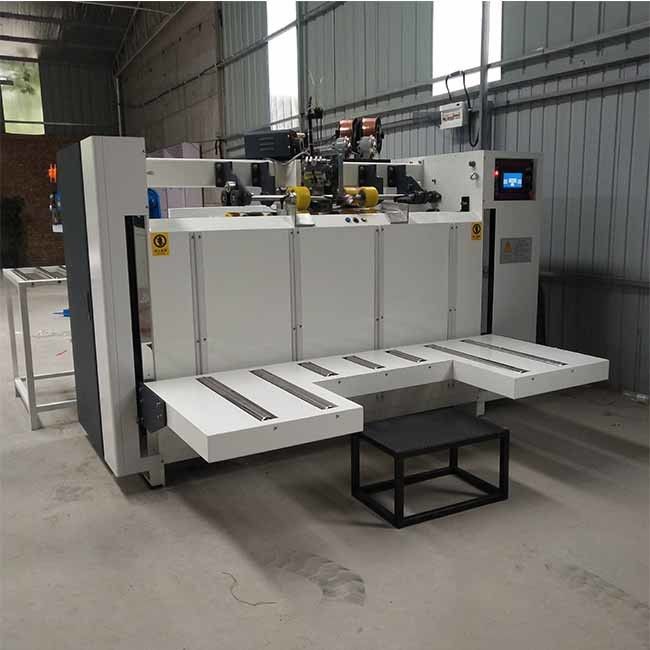

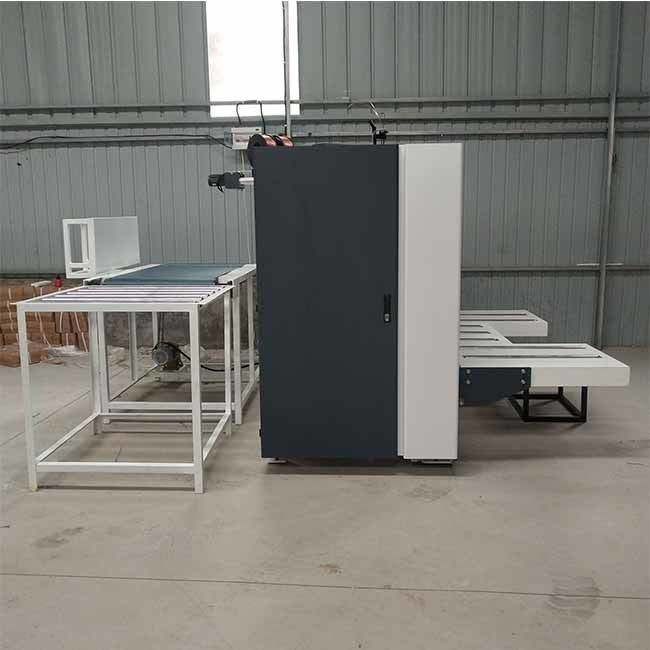

Semi-Auto Single Piece Carton Stitching Machine Cardboard Box Forming Machine
Introduction of Cardboard Box Stitching Machine
1) Mitsubishi original imported double servo drive, accurate precision, mechanical transmission part reduced, can effectively reduce the failure rate of machinery.
Cardboard Box Stitching Machine Parameter
Model |
HS-S2800 |
MAX.pardboard Size | 2800*1500mm |
MIN .pardboard Size | 660*330mm |
Nail Distance | 30-120mm |
Speed | 400-600 nails / min |
Total Power | 6HP |
Nail Wire | #17,#18 |
Paper Stacking Height | 900MM |
Weight | 2500KGS |
Main Units of Box Stitching Machine
Stapling head, punching and sliding are all adopts Japan alloy steel DC53 by strict heat process to ensure durable.
Suit for 3/5 ply offset carton and cover or no cover was stitched.
|
Single nail, double nail, strengthen nail can be stitched one time.
Size was controlled by electric, fault was showed on the screen.
|
Accessory List
NO | NAME | NO. | BRAND |
1 | Touch screen | 1 | WEINVIEW,TAIWAN |
2 | SERVO MOTOR | 2 | MITSUBISHI,JAPAN |
3 | PLC | OMRON,JAPAN | |
4 | MOTOR | 1 | LIMING,TAIWAN |
5 | BLADE | 1 | Japanese Tungsten Steel |
6 | STITCHING HEAD | 1 | Imported from Taiwan, Italian technology |
7 | PHOTOELECTRIC SENSOR | 2 | OMRON,JAPAN |
8 | BREAKER | Schneider | |
9 | BUTTON | Schneider | |
10 | Wire Feeder | 1 | SHANGHAI |
11 | WALLBOARD | 1 | THICKNESS12mm |
12 | BEARINGS | 1 | C&U |
