Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-S2800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Maximum Cardboard Size: | 2800*1500mm | Minimum Cardboard Size: | 660*330mm |
|---|---|---|---|
| Nail Distance: | 30-120mm | Maximum Speed: | 400-600 Nails/min |
| Name: | Corrugated Cardboard Box Nail Machine Single Piece Stitcher Stitching Machine | Power: | 6HP |
| Nail Wire Model: | #17、#18 | Number Of Nails: | 1-99 |
| High Light: | Semi Auto Carton Box Stitching Machine,6HP Carton Box Stitching Machine,RINO Cardboard Box Forming Machine |
||
Product Description

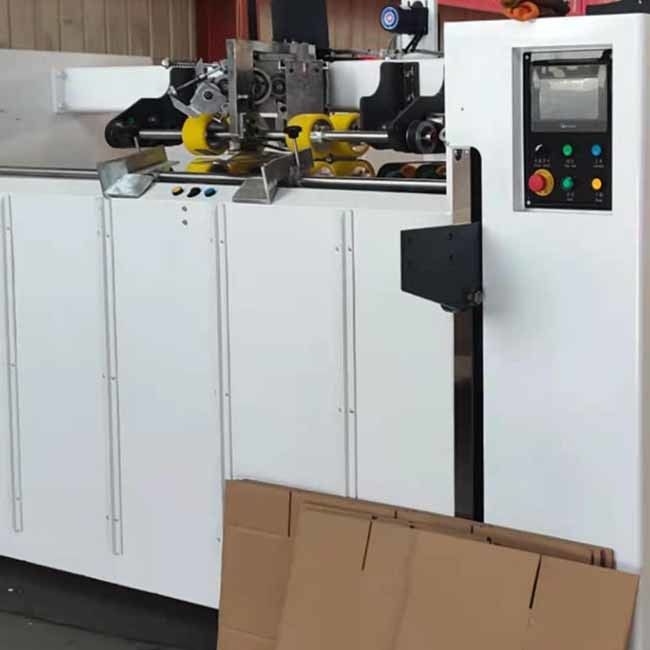

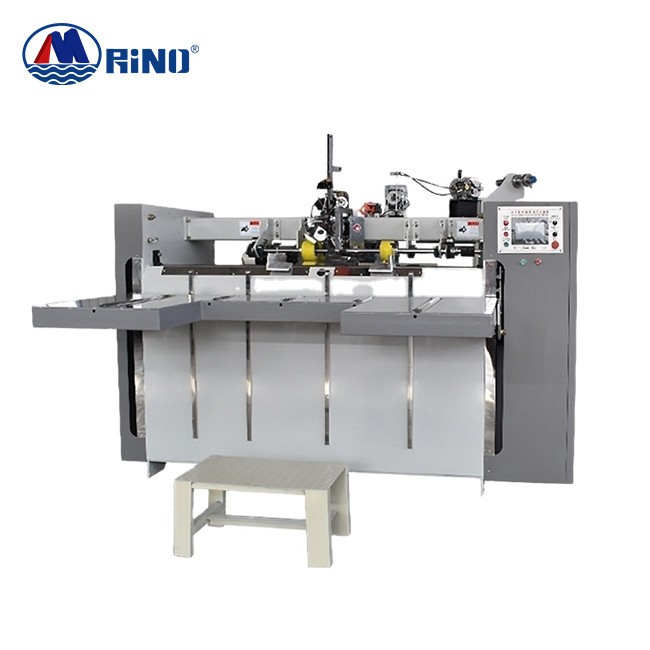

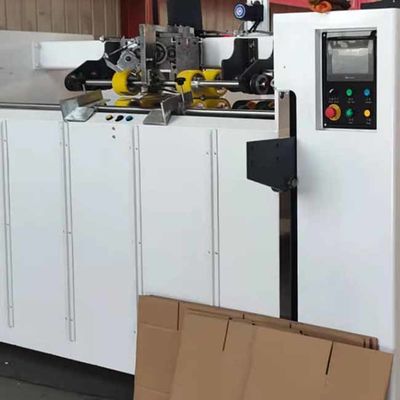

Semi-Auto Single Piece Carton Stitching Machine Cardboard Box Forming Machine
Introduction of Cardboard Box Stitching Machine
1. Suitable for single nail, Dual nail, strengthen nails, Dual nail on both sides and single nail in the middle ). Completed at one time. Meet the request of different customer requirements.
2. The changement of the box dimention and adjustment of the nail distance will be completed in only 1 minute which is quick and easy in operation.
3. Suitable for both kinds of boxes that with or without the covers but need to clarify if you have the without cover orders when book the machine.
4. Department of automatic counting, feed units equipped with photoelectric sensors, when feeding, table automatically rise.
5. Auto counting of the paper feeding part. Equipped with the photoelectric equipment in the paper feeding department. Auto lifting when feeding.
6. Auto counting of the rear part, The completed products will be sent to the machine end according to the set amount ( 1-99 ) which make it easier for binding.
Cardboard Box Stitching Machine Parameter
| Model |
HS-S2800 |
| MAX.pardboard Size | 2800*1500mm |
| MIN .pardboard Size | 660*330mm |
| Nail Distance | 30-120mm |
| Speed | 400-600 nails / min |
| Total Power | 6HP |
| Nail Wire | #17,#18 |
| Paper Stacking Height | 900MM |
| Weight | 2500KGS |
Main Units of Box Stitching Machine
|
|
Stapling head, punching and sliding are all adopts Japan alloy steel DC53 by strict heat process to ensure durable.
Suit for 3/5 ply offset carton and cover or no cover was stitched.
|
|
|
Single nail, double nail, strengthen nail can be stitched one time.
Size was controlled by electric, fault was showed on the screen.
|
Accessory List
| NO | NAME | NO. | BRAND |
| 1 | Touch screen | 1 | WEINVIEW,TAIWAN |
| 2 | SERVO MOTOR | 2 | MITSUBISHI,JAPAN |
| 3 | PLC | OMRON,JAPAN | |
| 4 | MOTOR | 1 | LIMING,TAIWAN |
| 5 | BLADE | 1 | Japanese Tungsten Steel |
| 6 | STITCHING HEAD | 1 | Imported from Taiwan, Italian technology |
| 7 | PHOTOELECTRIC SENSOR | 2 | OMRON,JAPAN |
| 8 | BREAKER | Schneider | |
| 9 | BUTTON | Schneider | |
| 10 | Wire Feeder | 1 | SHANGHAI |
| 11 | WALLBOARD | 1 | THICKNESS12mm |
| 12 | BEARINGS | 1 | C&U |
