Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-A1400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |

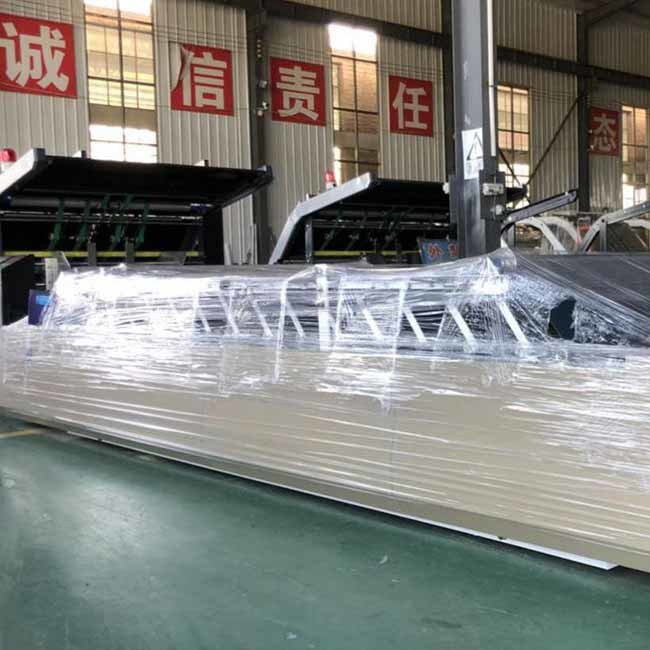

| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | Automatic Front Gauge Flute Laminating Machine Corrugated Board Flute Laminator Machine | Maximum Size: | 1400mm×1250mm |
|---|---|---|---|
| Minimum Size: | 360*360mm | Design Speed: | 8000pcs/h |
| Working Speed: | 6000pcs/h | Laminate Precision: | ≤±1.5mm |
| Total Power: | 12kw | Overall Size: | 13.5m×2.05m×2.4m |
| High Light: | 1400×1250mm Automatic Flute Laminator Machine,RINO Automatic Flute Laminator Machine |
||
Product Description

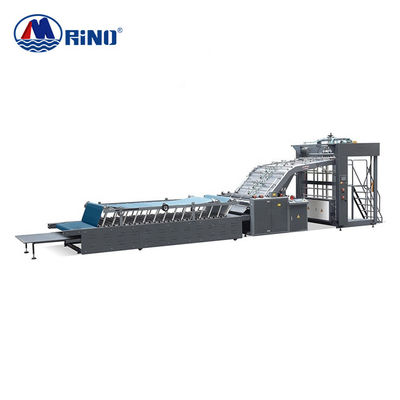

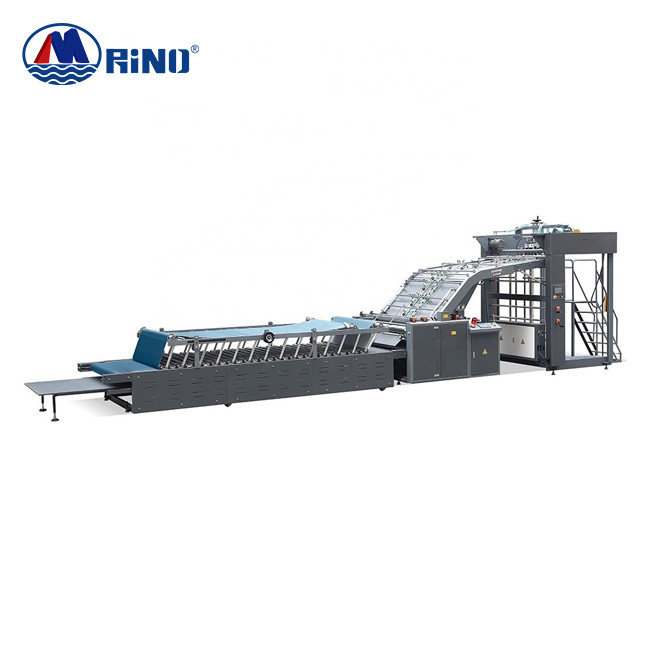

Automatic Front Gauge Flute Laminating Machine Corrugated Board Flute Laminator Machine
Basic Configuration of Flute Laminating Machine
1. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
2. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
3. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
4. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
5. Roller design scientifically, avoid glue fly out when the speed is high.
6. Pressure rollers adopt one side adjustment, convenient and fast.
7. Rocker controls wash roller's fluctuation, easy cleaning.
8. Counter designs scientifically, easy recording the amount you have been worked.
Main Parameter of Flute Laminating Machine
| Model |
HF-A1300 |
HF-A1400 |
HF-A1500 |
HF-A1600 |
| Maximum size | 1300×1100mm | 1400×1250mm | 1500×1250mm | 1600×1250mm |
| Minimum size | 360×360mm | 360×360mm | 360×360mm | 360×360mm |
| Laminate precision | ≤±1.0mm | ≤±1.0mm | ≤±1.0mm | ≤±1.0mm |
| Design speed | 8000pcs/h | 8000pcs/h | 8000pcs/h | 8000pcs/h |
| Working Speed | 6000pcs/h | 6000pcs/h | 6000pcs/h | 6000pcs/h |
| Total power | 11.5kw | 11.5kw | 11.5kw | 11.5kw |
| Length | 11m | 11m | 11m | 11m |
| Total weight | 3.8t | 3.9t | 4.0t | 4.2t |
Main Units
|
|
Top feeding unit
|
|
|
Gluing unit
|
Factory of Flute Laminating Machine
