Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-H2100 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Full Automatic Servo High Speed Flute Laminating Machine Flute Laminator Machine | Maximum Paper: | 2100×1650mm |
|---|---|---|---|
| Minimum Paper: | 450*500mm | Maximum Speed: | 200 P/M |
| Overall Dimension: | 13900Lx3100Wx2600Hmm | Total Weight: | 9500kg |
| Total Power: | 25KW | Laminate Precision (mm): | ≤±1.5 |
| High Light: | 200 P/M Flute Laminating Machine,2100mm Flute Laminating Machine,25KW Automatic Flute Laminating Machine |
||
Product Description

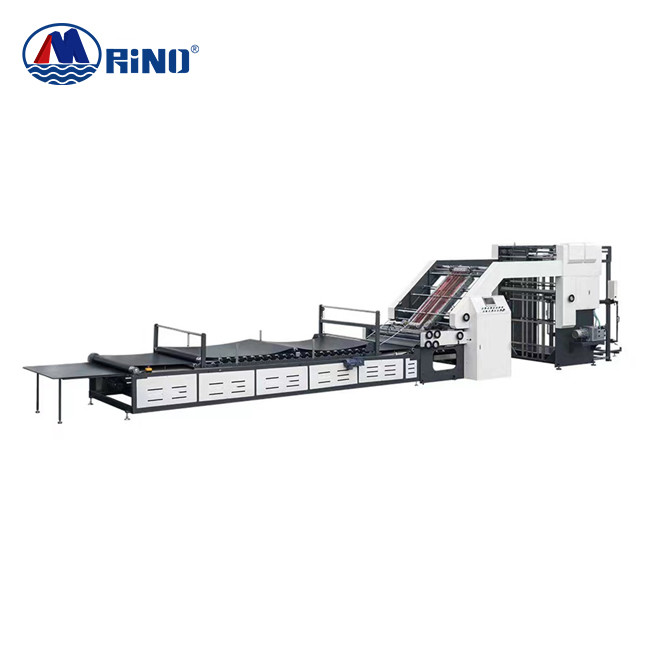

Automatic High Speed 2100mm Flute Laminating Machine Flute Laminator Machine
This machine adopts the motion control system and servo correction device perfect combination, the use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper. Servo laminating machine is simple for operation, just enter the paper size,machine can automatically finish adjustment.
Main Parameter
| Model | HF-H1450 | HF-H1650 | HF-H1900 | HF-H2100 |
| Maximum size(mm) | 1450*1450 | 1650*1650 | 1900*1650 | 2100×1650 |
| Minimum size(mm) | 450*450 | 450*450 | 450*500 | 450*500 |
| Top feeding paper thickness | 200g/m2-500g/m2 | 200g/m2-500g/m2 | 200g/m2-500g/m2 | 200g/m2-500g/m2 |
| Bottom feeding paper thickness | 0.5~10mm | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Laminate precision (mm) | ≤±1.5 | ≤±1.5 | ≤±1.5 | ≤±1.5 |
| Max.Speed | 150m/min | 150m/min | 150m/min | 150m/min |
| Overall dimension | 13500Lx2450Wx2600H | 13900Lx2700Wx2600H | 14500Lx2950Wx2600H | 13900Lx3100Wx2600H |
| Total weight(t) | 6.5 | 7.5 | 8.5 | 9.5 |
| Total power | 22KW | 23KW | 25KW | 25KW |
Main Units
|
Top paper feeding unit
Feeder seat:E-type low-pile board design,can be fit into place the paper in pallet truck:optional pre-installed auxiliary rail station stack of paper.
|
|
Bottom paper feeding unit |
|
Positioning unit |
