Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HE-M1800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Corrugated Board Production Line 1800 Electrical Shaft Less Mill Roll Stand Corrugated Board Making | Maximum Diameter: | φ1400mm |
|---|---|---|---|
| Range Of Width: | 1800mm | Voltage Supply: | 220V/380V |
| Usage: | Kraft Paper Holding | Color: | Customized |
| Type: | Electrical | Loading Capacity: | 1.5-2t/side |
| High Light: | Electrical Corrugated Board Production Line,Mill Stands Corrugated Board Production Line,Shaft Less Rolling Mill Stands |
||
Product Description

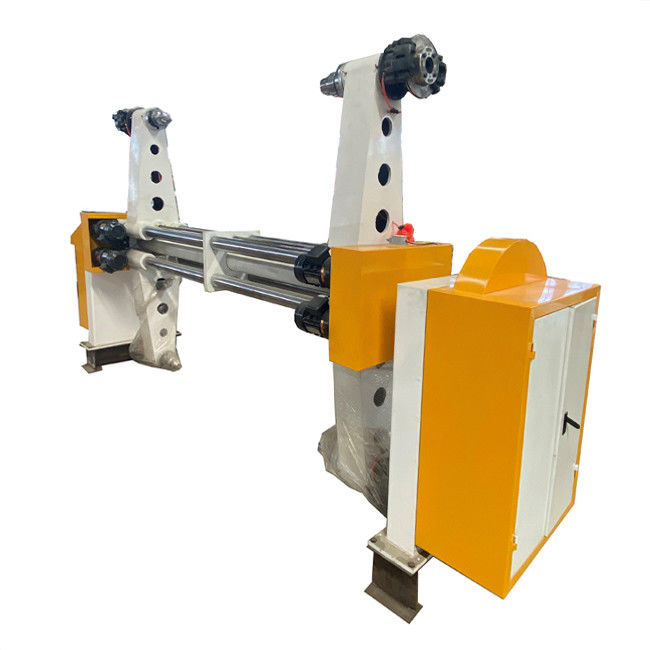

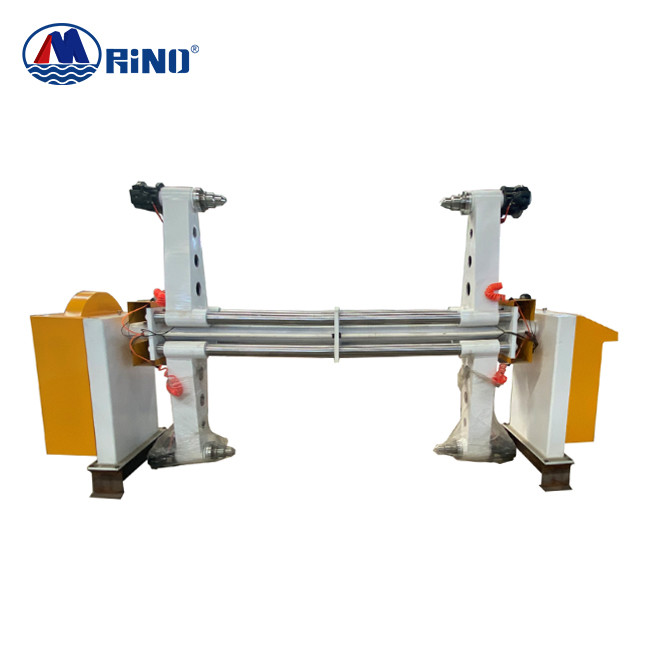

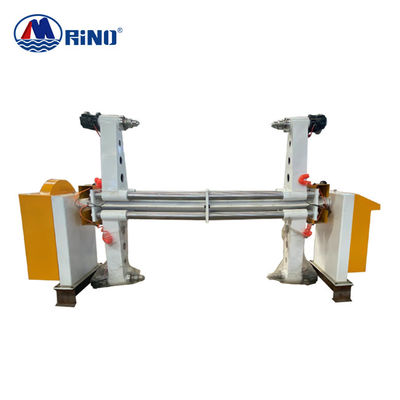

Corrugated Board Production Line 1600 Electrical Shaft Less Mill Roll Stand
Electrical Shaft-Less Mill Roll Stand Function
| Width | 1400-2500mm |
| Paper roll dia. | φ350-φ1500mm |
| Single side hold weight | 2T |
| Pressure | 0.6-0.9Mpa |
| Total power | 4.0kw |
| Voltage | 3ph380v 50Hz |
Machine Introduction
|
|
The weighing structure can be installed two bundles of paper tube at the same time, can be used for non-stop paper changing operation;Using mechanical drive to complete the base paper clamping, lifting, loosening, moving to the center, left and right translation and other actions.
◆ Manual disc brake, below the limit screw, automatic expansion type clamping head.
The whole track buried, the main frame for the 14 channel steel and ￠20mm cold-drawn round steel welding, the length of the rail 4510mm.
◆ Each paper frame with two paper trolley from both sides can be simultaneously on the paper.
