Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HD-S1500 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1500 Semi Automatic Carton Box Die Cutting Machine Creasing And Die Cutter Machine | Max Feeding Cardboard Size: | 1510×1120mm |
|---|---|---|---|
| Min Feeding Cardboard Size: | 400×400mm | Max Die Cutting Size: | 1500×1100mm |
| Weight: | 17.8T | Die Cutting Precision: | ±0.5mm |
| Cardboard Thickness: | Corrugated Board Thickness ≤8mm | Max Die Cutting Speed: | 4500 Sheets/h |
| High Light: | 17.8T Creasing And Die Cutting Machine,4500 Sheets/H Creasing And Die Cutting Machine |
||
Product Description

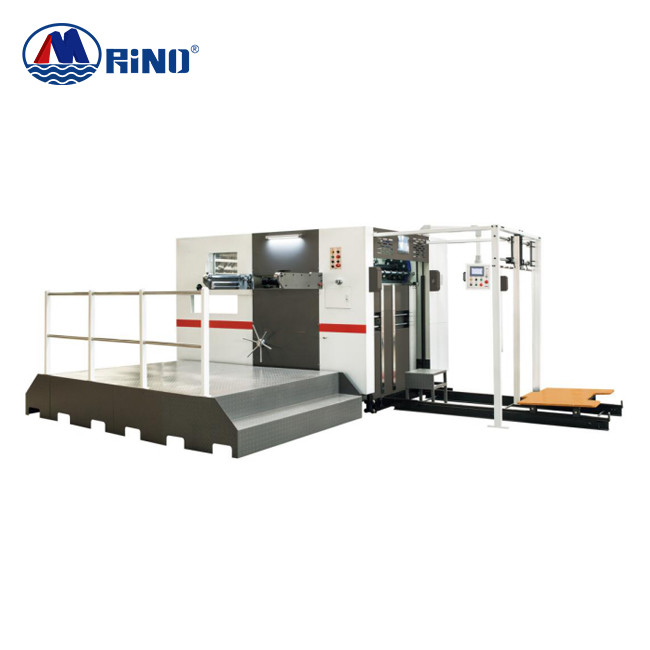

1500 Semi Automatic Carton Box Die Cutting Machine Creasing And Die Cutter Machine
Product Description Of Carton Box Die Cutting Machine
Die-cutting and creasing machine is a special equipment for die-cutting of high-end color boxes and color boxes, developed by our company combining the superior performance of similar products at home and abroad. This machine uses high-strength paper grippers. The advanced opening gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the accuracy of die-cutting paper. Equipped with high-precision intermittent mechanism; rapid-action pneumatic clutch and pneumatic lock plate. Using programmable controller and man-machine interface, digital display of the machine's working speed, number of processed sheets, and total running time; the machine's fault display makes troubleshooting operations very convenient. The inverter is used to control the main motor, stepless speed regulation, and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. Manual turning is convenient and labor-saving.
Parameter of Carton Box Die Cutting Machine
| Model | HD-S1500 |
| Max feeding cardboard size |
1510×1120mm |
| Min feeding cardboard size |
400×400mm |
| Max die cutting size | 1500×1100mm |
| Max die cutting pressure | 300T |
| Die cutting precision | ±0.5mm |
| Cardboard thickness | Corrugated board thickness ≤8mm (max. thickness) |
| Max die cutting speed | 4500 sheets/h |
| Weight | 17.8T |
| Total power | 17KW |
| Dimension |
6300×4500×2500mm |

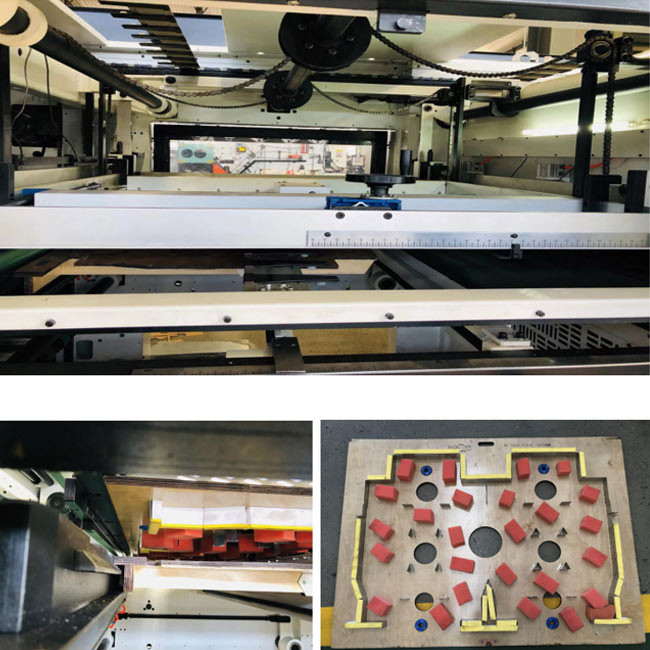

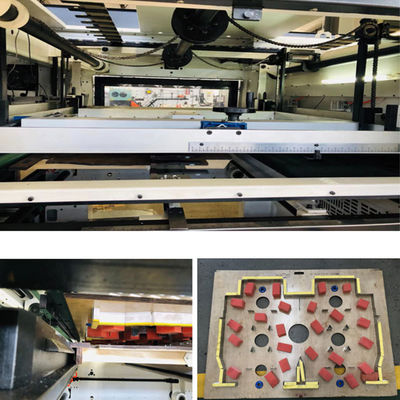

Main Units
|
|
Linear bearings are used for paper delivery and arranging, with simple structure and neat paper delivery. The humanized design ensures that the paper can be easily pulled out after die cutting, and the paper change time is controlled within one minute. |
|
|
The die-cutting pressure is adjusted by four points, which can be adjusted easily by turning the handle, or can be adjusted individually. With 350 tons of pressure, cardboard, corrugated paper or thick board paper can be easily die-cut. Unusual automatic control of loose plates, paper falling, etc. realizes humanized automation of mechanical operation. |
|
|
CE standard safety protection devices and warning devices ensure the safety of man and machine. The main motor adopts high protection grade motor and imported frequency converter, and the power is never interrupted.
|
Finished Products
