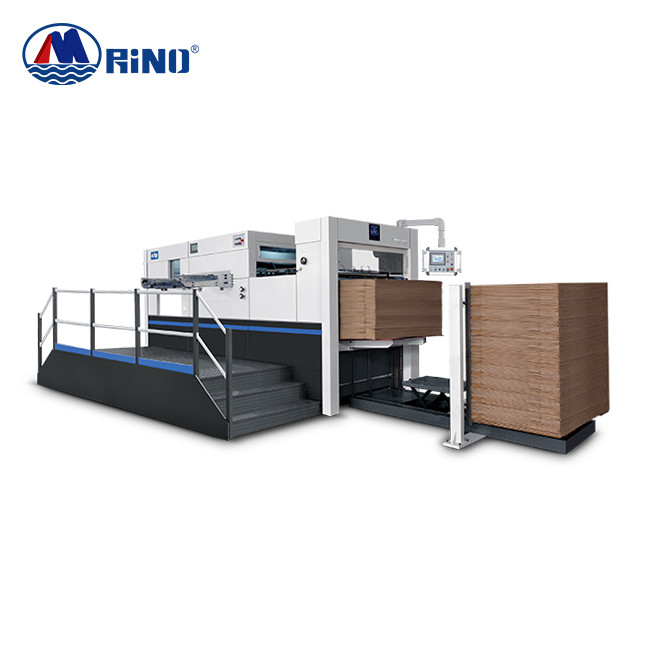

1300mm Die Cutting Machine For Cardboard 15KW Semi Automatic

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HD-S1300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: 1300 Semi Automatic Carton Box Die Cutting Machine Creasing Corrugated Die Cutting Machine Max Feeding Cardboard Size: 1310×980mm
Min Feeding Cardboard Size: 350×350mm Max Die Cutting Size: 1300×970mm
Max Die Cutting Pressure: 300T Die Cutting Precision: ±0.5mm
Cardboard Thickness: Corrugated Board Thickness ≤8mm Max Die Cutting Speed: 4500 Sheets/h
High Light:

1300mm die cutting machine for cardboard

,

15KW die cutting machine for cardboard

,

Semi Automatic cardboard die cutting machine

Product Description

1300 Semi Automatic Carton Box Die Cutting Machine Creasing Corrugated Die Cutting Machine



Product Description Of Carton Box Die Cutting Machine



Die-cutting and creasing machine is a special equipment for die-cutting of high-end color boxes and color boxes, developed by our company combining the superior performance of similar products at home and abroad. This machine uses high-strength paper grippers. The advanced opening gripper mechanism can adapt to various types of cardboard and corrugated paper; the front and rear positioning and side positioning mechanisms ensure the accuracy of die-cutting paper. Equipped with high-precision intermittent mechanism; rapid-action pneumatic clutch and pneumatic lock plate. Using programmable controller and man-machine interface, digital display of the machine's working speed, number of processed sheets, and total running time; the machine's fault display makes troubleshooting operations very convenient. The inverter is used to control the main motor, stepless speed regulation, and stable operation. The machine is equipped with sensors and safety devices in many places to ensure the normal operation of the machine and personal safety. Manual turning is convenient and labor-saving.



Parameter of Carton Box Die Cutting Machine



Model HD-S1300
Max feeding cardboard size 1310×980mm
Min feeding cardboard size 350×350mm
Max die cutting size 1300×970mm
Max die cutting pressure 300T
Die cutting precision ±0.5mm
Cardboard thickness Corrugated board thickness ≤8mm (max. thickness)
Max die cutting speed 4500 sheets/h
Weight 13.5T
Total power 15KW
Dimension 6000×4400×2500mm



Main Units



1300mm Die Cutting Machine For Cardboard 15KW Semi Automatic 0



Pre-coded paper, pneumatic side gauges, and non-wheel-type paper loading planks can minimize the paper change time and improve the efficiency of mechanical production.

Imported through-beam photoelectric, control the height of the paper stack, regardless of the warped paper and flat paper can automatically control the best paper feeding position, easy and continuous paper feeding, up to 4500 sheets/hour.



1300mm Die Cutting Machine For Cardboard 15KW Semi Automatic 1



The whole machine adopts the overall solution of Japanese IDED company, central high-speed PLC control, touch screen parameter setting and real-time communication monitoring, stable and convenient for maintenance.

A fault solution prompt appears.

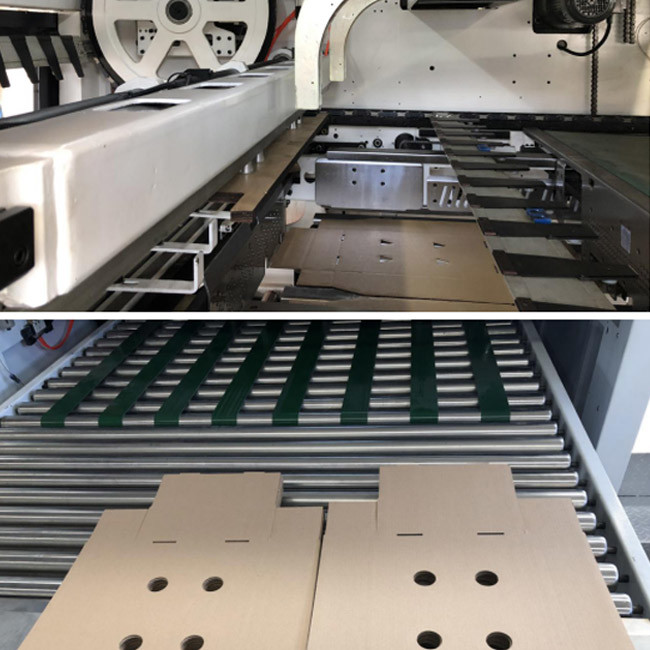

Finished Products



1300mm Die Cutting Machine For Cardboard 15KW Semi Automatic 21300mm Die Cutting Machine For Cardboard 15KW Semi Automatic 3
