PLC Control Flat Bed Die Punching Machine 32KW Die Cutting Punching Machine

Product Details:
Place of Origin: Shandong,China
Brand Name: RINO
Certification: CE
Model Number: HD-L1650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 40-60 Working Days After Deposit
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Automatic Leading Edge Feeding Type Flatbed Carton Box Die Cutting Machine Punching Machine Maximum Paper Size: 1670*1200mm
Minimum Paper Size: 500*550mm Die Cutting Precision: ±1mm
Maximum Speed: 4500sheets/h Power: 32KW
Weight: 23T Minimum Front Scrap Size: ≥8mm
High Light:

PLC Flat Bed Die Punching Machine

,

Feeding Flat Bed Die Punching Machine

,

32KW Die Cutting Punching Machine

Product Description

Automatic Leading Edge Feeding Type Flatbed Carton Box Die Cutting Machine Punching Machine



Carton Box Die Cutting Machine Introduction



* The whole machine wallboard and platform are all made of high-strength ductile iron to ensure large die cutting pressure

* Imported PLC control, touch screen adjustment, all adjustments are adjusted by motor, saving time and effort

* Automatic counting and non-stop paper-out design, with hydraulic lifting platform feeding system, convenient for non-stop paper feeding and paper-out



Carton Box Die Cutting Machine Parameter



Model HD-L1650
Max. paper size 1670*1200mm
Min. paper size 500*550mm
Max. die-cutting size 1650*1180mm
Max.die-cutting pressure 400N/cm2

Cardboard



Corrugated paper

200-2000g/m2

≤6mm
Max. die-cutting speed 4500sheets/h
Max. feeding pile height 1100mm
(above the level)
Total power 32KW

Weight



23T

Dimensions



7000*2980*2450mm




Main Units

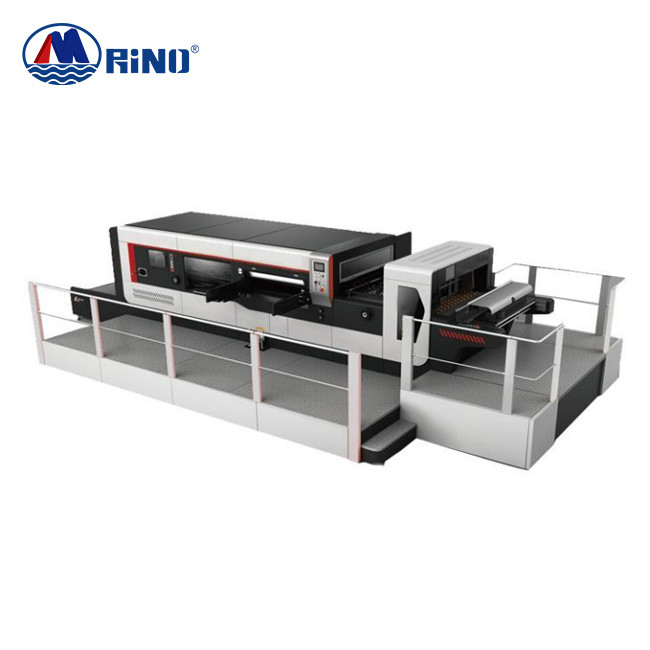

PLC Control Flat Bed Die Punching Machine 32KW Die Cutting Punching Machine 0

Paper feeding unit



Use high-power high-pressure fan to ensure smooth delivery of warped cardboard, air volume can be adjusted by micro-machine to adapt to 3-9mm corrugated paper

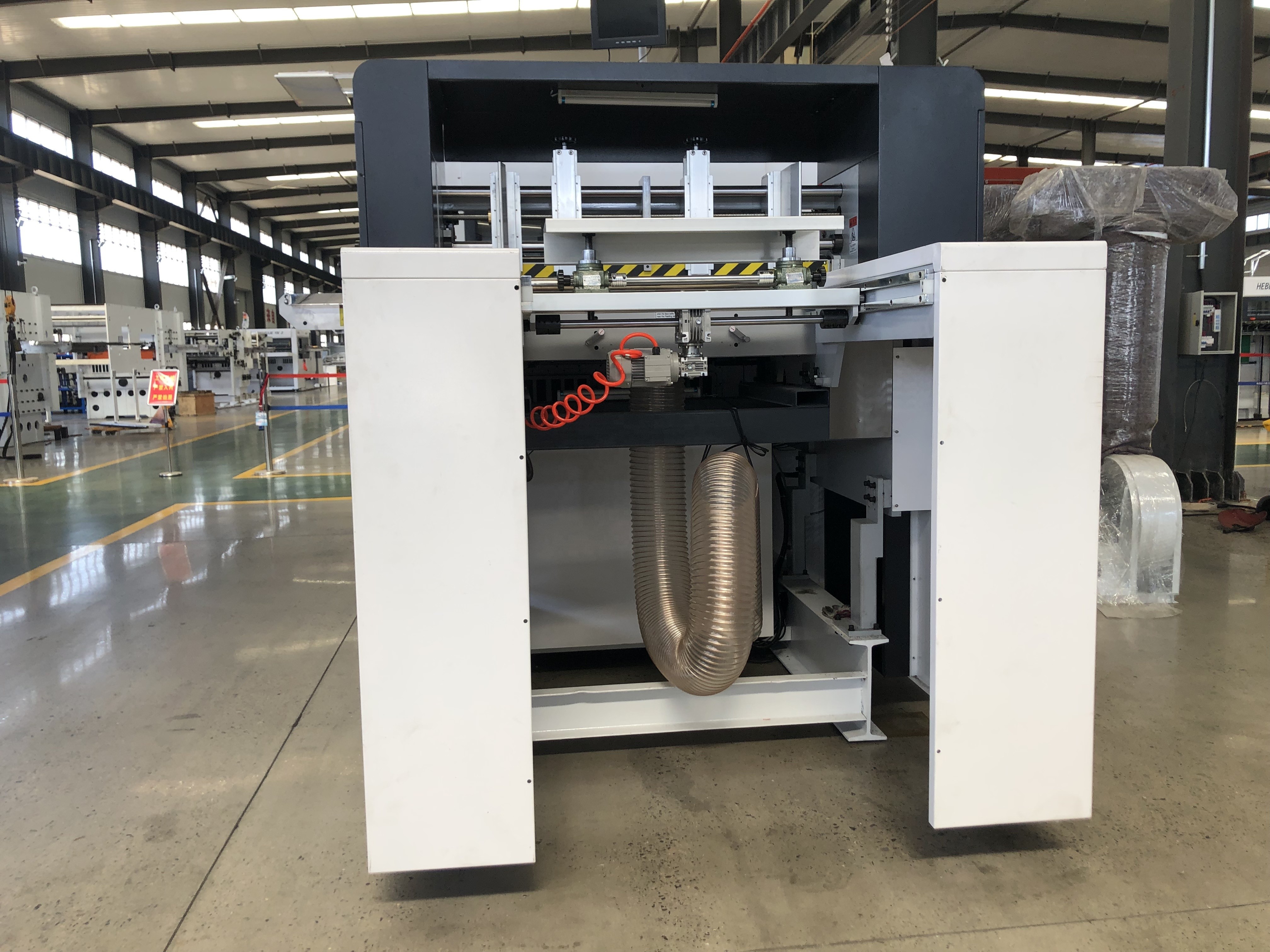

PLC Control Flat Bed Die Punching Machine 32KW Die Cutting Punching Machine 1

Die cutting unit



* The die-cut steel plate is made of 70Cr material, which is more durable; the upper part is provided with a floating air floating device, which makes the die-cutting board easy to enter and exit



* Die-cut protective window design for safer operation



PLC Control Flat Bed Die Punching Machine 32KW Die Cutting Punching Machine 2

Stripping unit



The complete waste removal system can automatically remove waste materials around and in the middle to ensure clean, neat waste removal and high production efficiency.



PLC Control Flat Bed Die Punching Machine 32KW Die Cutting Punching Machine 3

Electrical unit



The whole machine adopts PLC centralized control system

Adopt Japan Yaskawa inverter





Finished Products



PLC Control Flat Bed Die Punching Machine 32KW Die Cutting Punching Machine 4



Main Electrical Appliances



Equipment Brand
Timing belt Obi, Gates, EP
Mold spring
Crankshaft material and processing Japanese special steel
Vortex material and processing Japanese special steel
Vortex material and processing Japanese special steel
Cam material and processing Japanese special steel
Encoder Ikea, Switzerland


PLC Control Flat Bed Die Punching Machine 32KW Die Cutting Punching Machine 5
