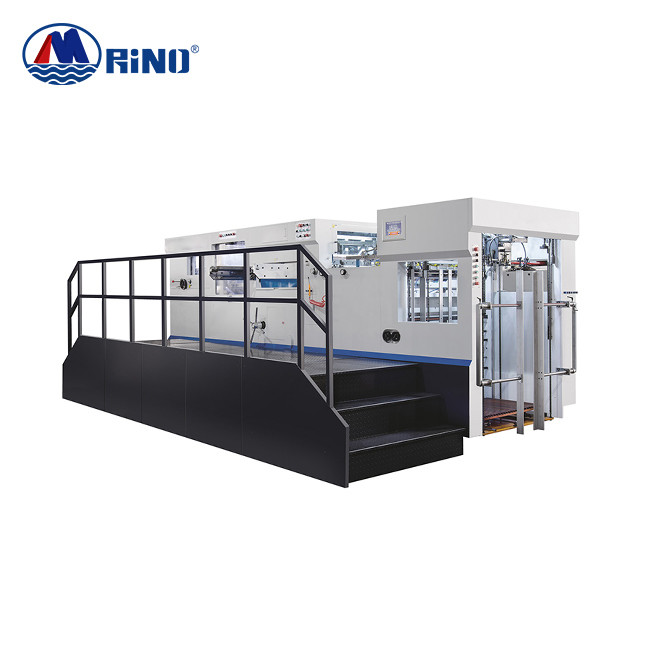

18KW 1060×760mm Carton Box Die Cutting Machine Feeder Feeding With Stripping

Product Description

Carton Box Automatic Die Cutting Machine Feeder Feeding With Stripping

Carton Box Die Cutting Machine Introduction

This machine realizes the automation of the paper feeding, die cutting, and paper delivery processes. Use the "human-machine interface" to display the machine's working speed, the number of processed sheets, the total running time and working status of the machine; realize the dynamic monitoring of the input points, output points and various faults of the programmable controller, so as to troubleshoot and operate More convenient. The preset technical device function can stop the air pump according to the preset number, and prompt to make a mark; the electronic cam composed of the encoder and the programmable controller is accurate and reliable, and the adjustment is convenient. The frequency converter is used to control the main motor, stepless speed regulation, stable operation, low noise, and energy saving. The machine also has automatic fault detection (including detection of double sheets, empty sheets, paper accumulation, falling paper, etc.), non-stop sampling functions, and high die-cutting pressure, high registration accuracy, and multiple sensors and safety protection devices. Ensure the normal operation of the machine and the safety of personnel.

Parameter of Die Cutting Machine

Main Units

Feeder feeding unit   The improved paper jogger device makes the adjustment of the paper push displacement easier and faster. The paper feed head with four suction and four feeds with 8 suction nozzles has strong suction force and stable paper feeding. The suction nozzle can adjust the angle and suction air volume according to the deformation of the paper to realize the smooth conversion between thin paper and thick paper.

Die cutting unit   Turbine crank drives the elbow-type high-precision die-cutting upper workbench; Fixed high-precision die-cutting lower workbench; The main parts of the core unit (crankshaft, worm, worm gear, toggle shaft) are imported high-grade alloy steel;

Paper receving unit   Sectional adjustable brush and paper flattening and blowing device to stabilize the finished product in the delivery section. Paper delivery and air blowing device, delivery of paper is smooth and tidy. The paper-receiving and paper-receiving mechanism can be changed quickly, effectively saving manpower.

Main Electrical device
