Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | Carton Box Folder Gluer Machine Foding Gluing Corrugated Cardboard Pasting Machine | Model: | HF-GA2400 |
|---|---|---|---|
| Maximum Unfolding Size: | 2400×1100mm | Minimum Unfolding Size: | 440×170mm |
| Motor Power: | 12kw | Installation Area: | 15000*4400mm |
| Voltage: | 380V/220V | Usage: | Carton Box Pasting Folding Gluing |
| High Light: | 220V Carton Box Folder Gluer Machine,380V Carton Box Folder Gluer Machine,2400mm Automatic Carton Folding Gluing Machine |
||
Product Description

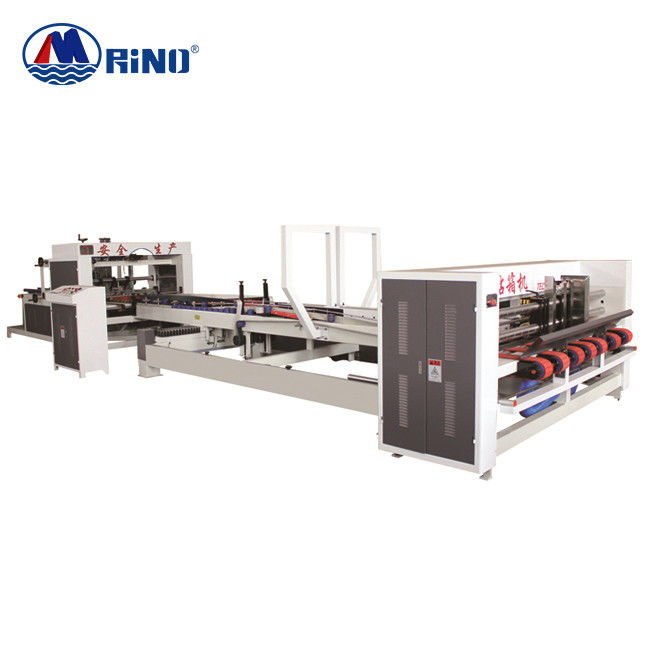

Carton Box Folder Gluer Machine Foding Gluing Corrugated Cardboard Pasting Machine
Product Introduction of Carton Box Folder Gluer
The full automatic folding and gluing machine is consist of three part which is feeding paper part , glue folding part and counting piling part . Adjust the speed by digital , micro-adjust the phase by computer with simple quick reliable and precise controlling style . The max speed can reach 100 m/min . High efficiency , save energy and environmental is our top pursuit .
Parameter of Carton Box Folder Gluer
| Model |
HF-GA2200 |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2000 | 440-2400 | 440-2600 | 440-2600 |
| Size C(mm) | 130-840 | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4000×15000 | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2200×1100 | 2400×1100 | 2600×1100 | 2600×1600 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 | 440×170 |
|
|

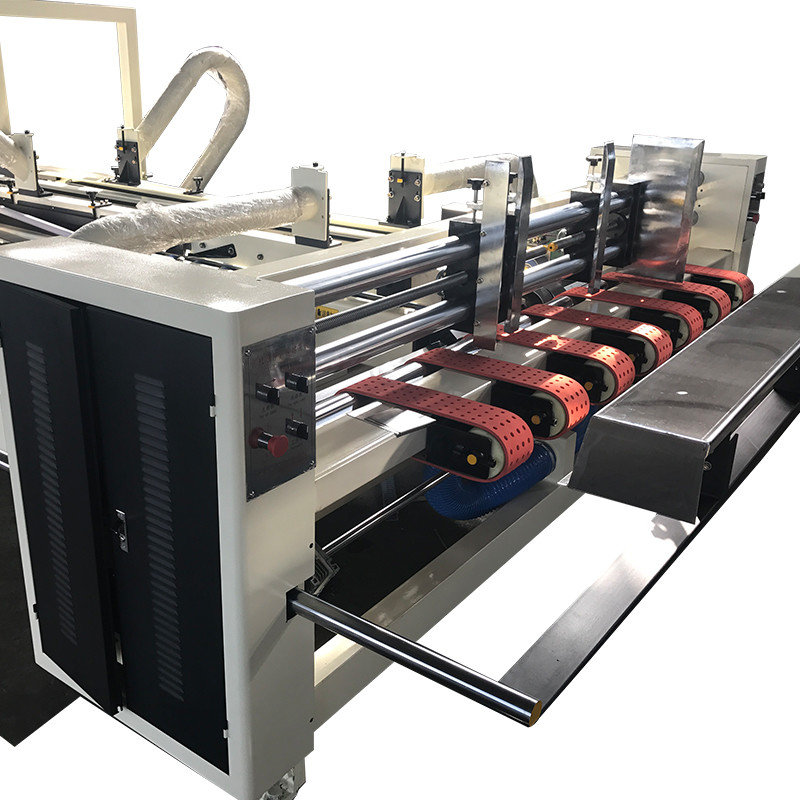

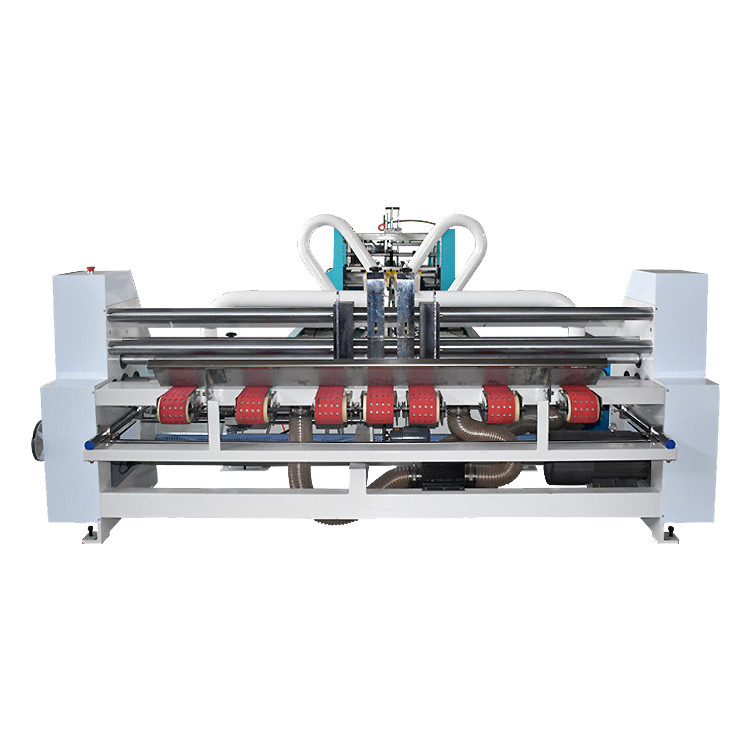

Paper Feeding Unit
1. Accurate suction and feeding paper .Adopt the belt front edge suction and paper feeding method, which is accurate and reliable. 2. Adopting high-end electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be controlled separately, and the operation is simple and reliable.
|
|
|
Paper folding unit
1. The main motor adopts frequency conversion speed regulation system, no noise, flexible and stable speed regulation 2. Imported high-friction belts are used to convey the cardboard, automatically stacked
|
|
|
Stacking unit
1. Automatic stacking and neat output function 2. The main motor of the technical department is frequency-controlled, the speed is adjustable, and the startup is stable and reliable 3. Use belt to transport cartons, stack neatly, speed 0-130m/min
|
Electrical device
| 1 Bearing | HRB | Some |
| 2 Frequency converter | Delta,Taiwan | Whole |
| 3 PLC | Delta,Taiwan | Whole |
| 4 Contactor | Schneider France | Whole |
| 5 Touch Screen | MCGS | Whole |
| 6 Remote control | Telecrane,Taiwan | Whole |
| 7 Counting photoelectric | Omron Japan | Whole |
| 8 Main Motor | Huaxing, shenyang | Two Sets |
