Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GD3300 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | 3300 Double Pieces Carton Box Folder Gluer Machine Corrugated Board Folding Gluing Machine | Maximum Size: | 1650×1200mm |
|---|---|---|---|
| Minimum Size: | 470×300mm | Applicable Paper: | A-E Corrugated Board And 5ply Cardboard |
| Maximum Speed: | 4000 Pieces/hour | Total Power: | 11 Kw |
| Weight: | 4000 KG | Overall Dimensions: | 8000×4500×1400mm |
| High Light: | 5ply Cardboard Fold And Glue Machine,4000 Pieces/Hour Fold And Glue Machine |
||
Product Description

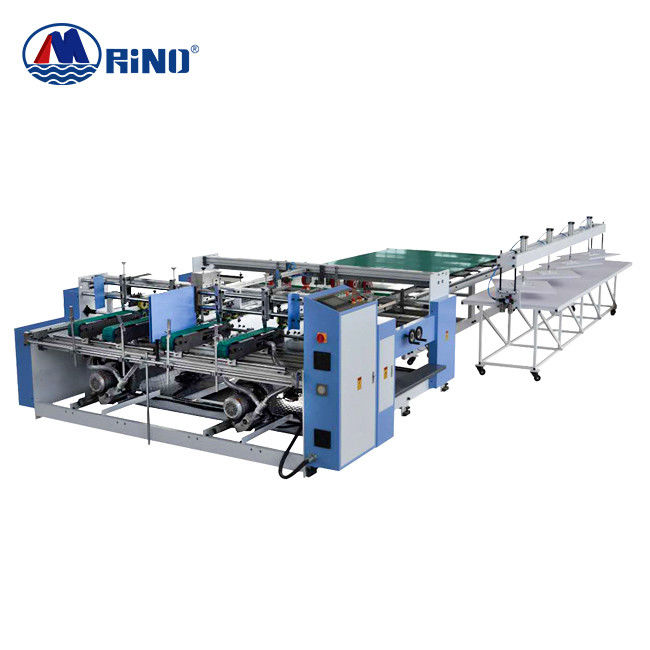

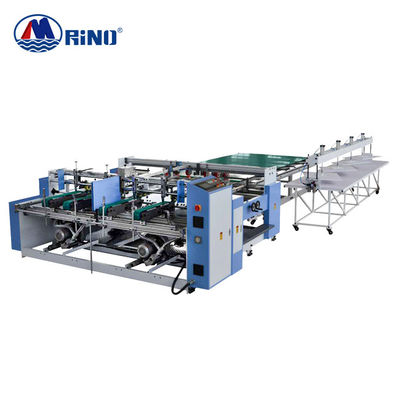

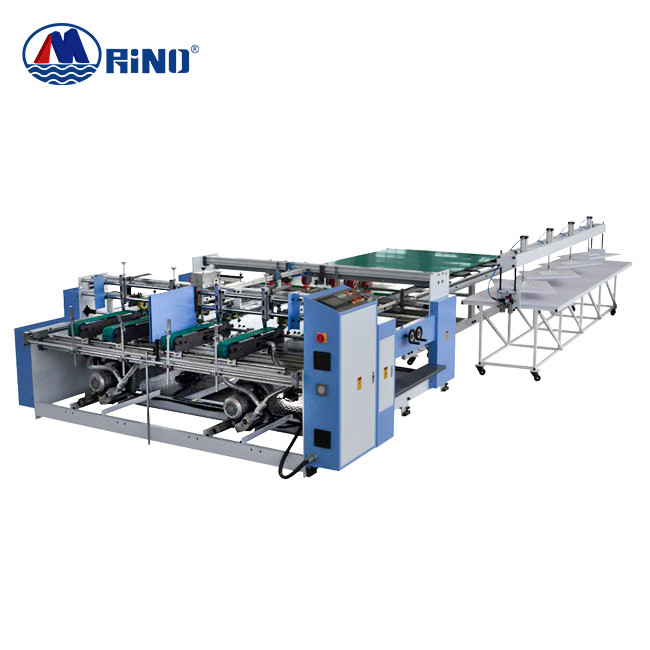

3300 Double Pieces Carton Box Folder Gluer Machine Corrugated Board Folding Gluing Machine
Introduction Of Carton Box Folder Gluer Machine
Semi-automatic corrugated box gluing machine is the most advanced equipment to fill the domestic manufacturers of corrugated box labor costs rising trend, the equipment has high efficiency, flexible operation, low maintenance costs, production efficiency and the traditional manual increase more than ten times. The advantages of this device is automatic feeding, dispensing, bonding. To meet the variety, mass production requirements, to adapt to food, cotton and other product packaging needs, is the ideal carton equipment, corrugated box industry, is the essential equipment for this scope.
Parameter
| Model |
HF-GD2400 |
HF-GD2900 |
HF-GD3300 |
| Max. Size |
1200×1200 mm |
1450×1200mm |
1650×1200mm |
| Min size |
470×300mm |
470×300mm |
470×300mm |
|
Applicable |
A-E corrugated board |
A-E corrugated board |
A-E corrugated board |
| Max speed |
0-4000 pieces/hour |
0-4000pieces/hou |
0-4000 pieces/hour |
| Total power | 11 kw | 11 kw | 11kw |
| Weight | 3300 KG | 3500kg | 4000KG |
| Dimensions |
8000×4500×1400 |
8000×5300×1400 |
8000×5500×1400 |

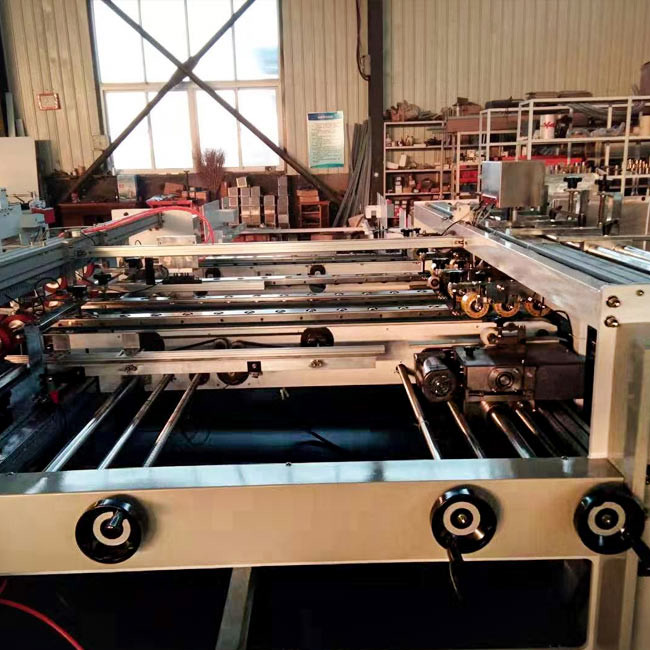

Machine details
|
|
Parts List
| PARTS NAME | BRAND |
| MAIN MOTOR | SEIMENS |
| FEEDING MOTOR | ZHONGDA (ZD CHINA) |
| FEEDING PUMP | NAXIDE (CHINA ) |
| LINEAR GUIDEWAY | KOREA IMPORTED |
| GUIDE SCREW | HIWIN TAIWAN |
| SOLENOID VALVE | AIRTAC TAIWAN |
| INVERTER | TAIWAN DELTA |
| SERVO MOTOR | DELTA TAIWAN |
| HUMAN MACHINE INTERFACE | TAIWAN DELTA |
| POWER | TAIWAN DELTA |
| PROGRAM CONTROLLER | TAIWAN DELTA |
| FASTENERS | TAIWAN JINYI, PENGCHI, CYZ, EG |
| RELAY | JAPAN IMPORTED |
