Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HF-GA2400 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Name: | 2400 Carton Box Folder Gluer Machine Folding Gluing Machine | Model: | HF-GA2400 |
|---|---|---|---|
| Maximum Unfolding Size: | 2200×1100mm | Minimum Unfolding Size: | 440×170mm |
| Motor Power: | 12kw | Installation Area: | 15000*4200mm |
| Voltage: | 380V/220V | Usage: | Carton Box Pasting |
| High Light: | 2400×1100mm Corrugated Box Folder Gluer Machine,12kw Corrugated Box Folder Gluer Machine |
||
Product Description

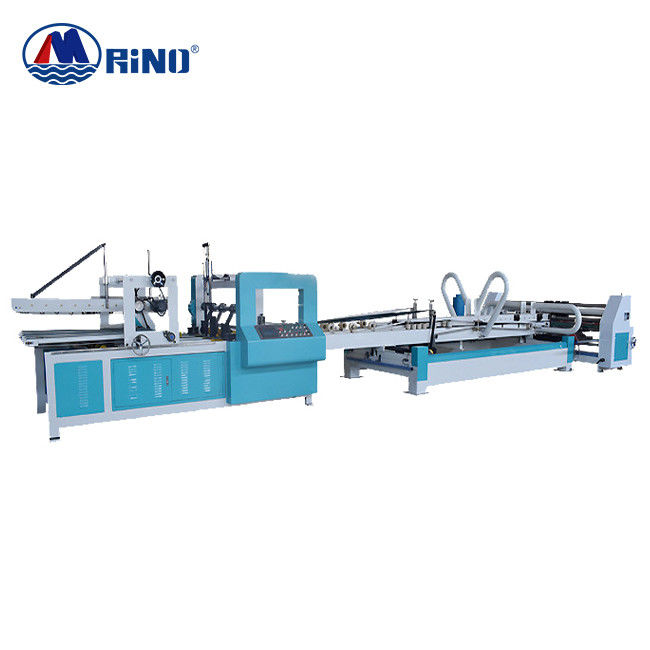

2400 Carton Box Folder Gluer Machine Folding Gluing Machine
Product Introduction of Carton Box Folder Gluer
This machine can achieve whole computer adjustment for gluer unit, feeding unit and folder unit, just enter three data on the touch screen (Length, width, height size), the machine can automatic adjustment to exact position.
This machine was also setting the single computer NC adjustment, it can adjustment for any single position, at the same time, It was also setting the adjustment button, which can meet any different operation habit.
Parameter of Carton Box Folder Gluer
| Model |
HF-GA2400 |
HF-GA2600 |
HF-GA2800 |
| Size A(mm) | 80-850 | 80-850 | 80-850 |
| Size B(mm) | 440-2400 | 440-2600 | 440-2600 |
| Size C(mm) | 130-840 | 130-840 | 130-840 |
| Size D(mm) | 170-1100 | 170-1100 | 170-1100 |
| Installation area(mm) | 4200×15000 | 4400×15000 | 4600×15000 |
| Motor Power(kw) | 12kw | 12kw | 12kw |
| Maximum unfolding size(mm) | 2400×1100 | 2600×1100 | 2600×1600 |
| Minumum unfolding size(mm) | 440×170 | 440×170 | 440×170 |
|
|
Paper Feeding Unit
1. Vacuum suction feeding to feed warping paperboard easily.
|
|
|
Paper folding unit
1. Simple structure and high reliability, glue quantity adjustable, cleaning easily.
|
|
|
Stacking unit
1. Stacking and counting are simple and reliable.
|
Electrical device
| 1 Bearing | HRB | Some |
| 2 Frequency converter | Delta,Taiwan | Whole |
| 3 PLC | Delta,Taiwan | Whole |

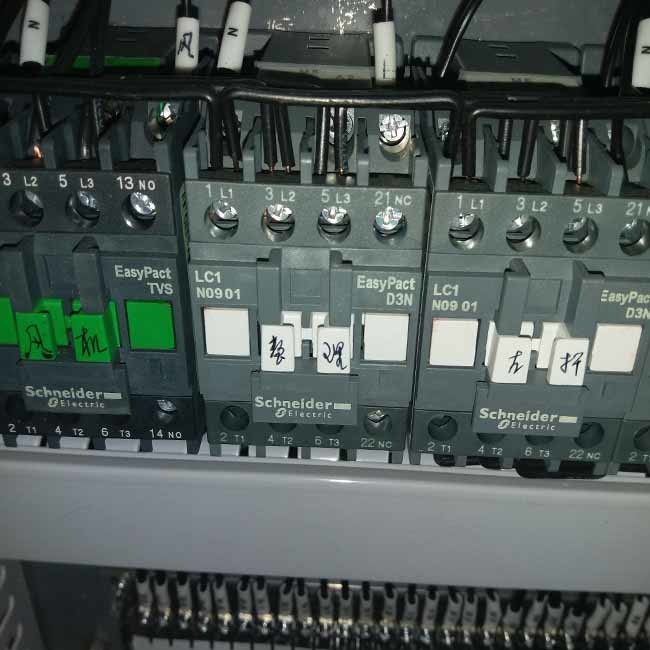

| 4 Contactor | Schneider France | Whole |
| 5 Touch Screen | MCGS | Whole |
| 6 Remote control | Telecrane,Taiwan | Whole |
| 7 Counting photoelectric | Omron Japan | Whole |
| 8 Main Motor | Huaxing, shenyang | Two Sets |
Packaging&Shipping
