Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HE-M1600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Month |
|
Detail Information |
|||
| Name: | Corrugated Board Production Line 1600 Electrical Shaft-Less Mill Roll Stand | Maximum Diameter: | φ1400mm |
|---|---|---|---|
| Range Of Width: | 1600mm | Voltage: | 220V/380V |
| Usage: | Kraft Paper Holder | Color: | Customized |
| Type: | Electrical | Loading Capacity: | 1.5-2t/side |
| High Light: | Electrical Hydraulic Mill Roll Stand,Cardboard Hydraulic Mill Roll Stand |
||
Product Description

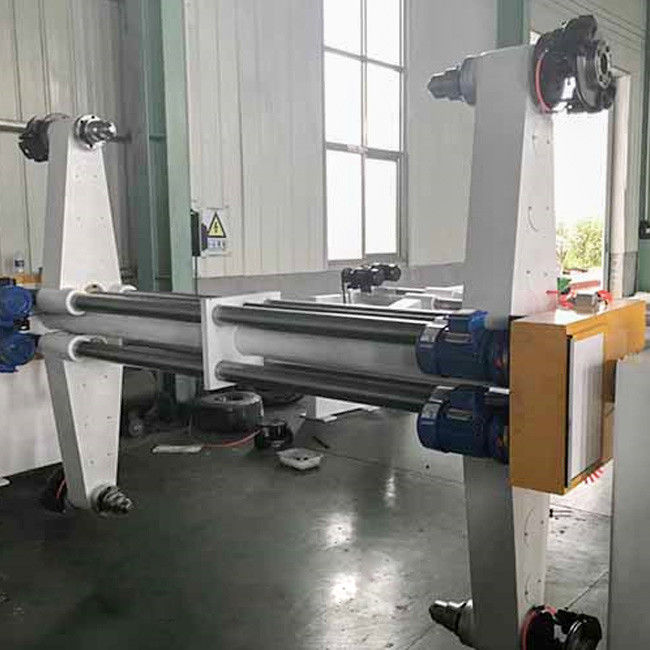

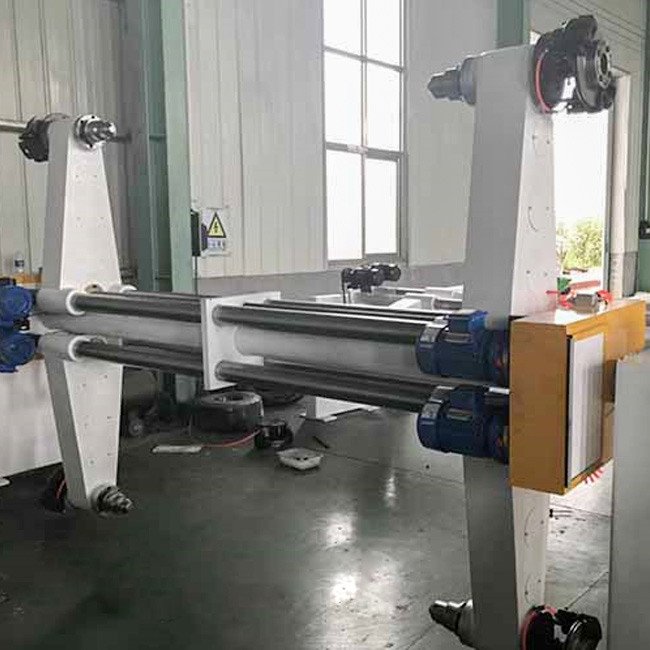

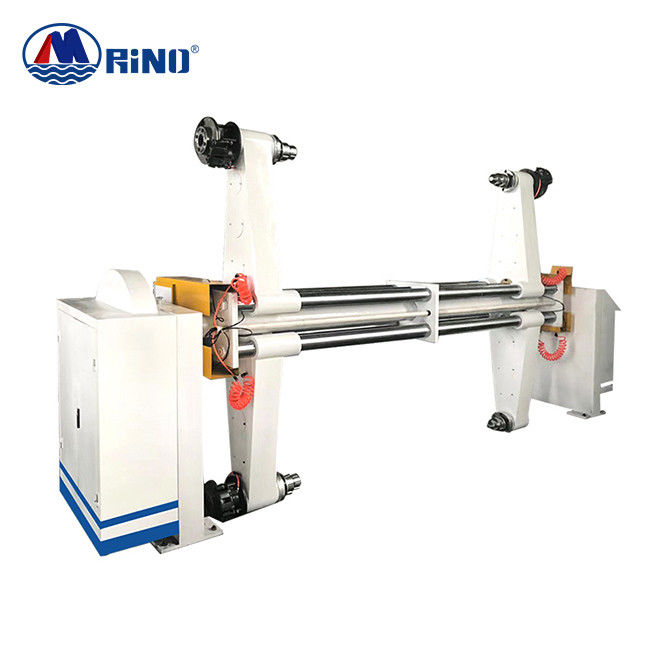

Corrugated Board Production Line 1600 Electrical Shaft Less Mill Roll Stand
Electrical Shaft-Less Mill Roll Stand Function
| Width | 1400-2500mm |
| Paper roll dia. | φ350-φ1500mm |
| Single side hold weight | 2000kg |
| Pressure | 0.6-0.9Mpa |
| Total power | 4.0kw |
| Voltage | 3ph380v 50Hz |
Machine Introduction
|
|
1. Electrical shaft-less mill roll stand, which is used in corrugated cardboard production line, its function is supporting the paper mill roll.
2. Symmetrical structure can install two rolls of paper at the same time and continually change paper;
3. Paper roll clamp-loosen, lift-lower, movement, Contraposition, translation ect .operated by electric driven .
4. Maximum diameter:φ1400mm
5. Range of width: 1600mm
6. Pneumatic or Mannual control web tension. Taper centre, stretch centre is optional.
