Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HS-S2000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 Set/Month |
|
Detail Information |
|||
| Maximum Paper Size: | 1515×2460mm | Minimum Paper Size: | 300×606mm |
|---|---|---|---|
| Nail Distance: | 30-100mm | Speed: | 600 Nails/min |
| Name: | 600 Nails/Min Carton Box Stitching Machine 1515×2460mm Double Servo Motor | Power: | 6HP |
| Nail Wire: | 2.0mm×(0.65-0.75mm) | Weight: | 2000kg |
| High Light: | 600 Nails/Min Carton Box Stitching Machine,1515×2460mm Carton Box Stitching Machine,Double Servo Carton Box Stitching Machine |
||
Product Description

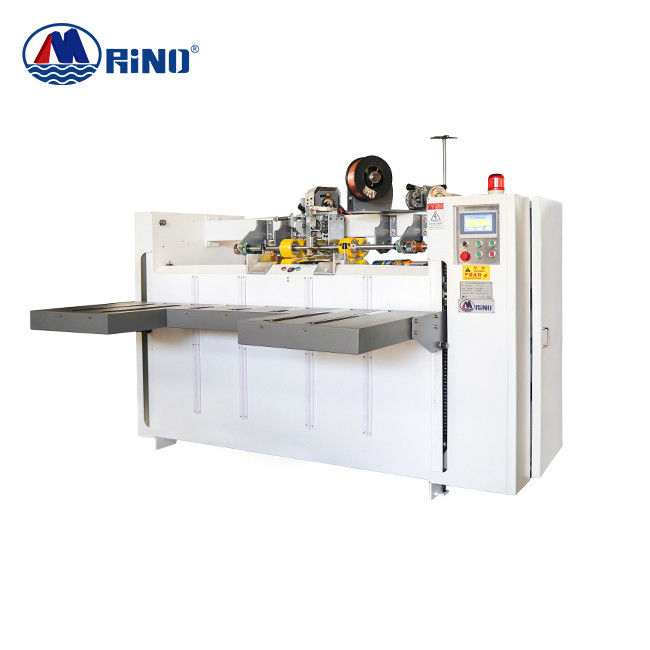

Single Piece 2000 Semi Automatic Cardboard Box Stitching Machine Stitcher
Introduction of Cardboard Box Stitching Machine
★ Imported from Japan MITSUBISHI double servo motor, high precision reduce the mechanical transmission part, effectively reduce the mechanical fault rate.
★ Touch screen operation, the parameters (screw pitch, the number of nails, nail, tailgate) transform is convenient.
★ The whole control system adopts the control system of OMRON PLC, more accurately convey instructions.
★ Back electric baffle, by Taiwan Liming stepper motor drive, accurate size, transform size more convenient.
★ The bottom die, tungsten steel blade adopts Japanese made (wear) has greatly increased the service life.
★ The whole group of nail head. All computer gongs are made of special steel, precision machining, imported from Taiwan, Italy.
★ You can nail a single nail, double nail, once completed, can be suitable for different customers for different requirements for the nail.
Cardboard Box Stitching Machine Parameter
| Model | HS-S2000 |
| MAX.Cardboard Size | 1515×2460mm |
| MIN .Cardboard Size | 300×606mm |
| Nail Distance | 30-100mm |
| Speed | 600 nails / min |
| Total Power | 6HP |
| Nail Wire | 2.0mm×(0.65-0.75mm) |
| Paper Stacking Height | 900MM |
| Weight | 2000KGS |

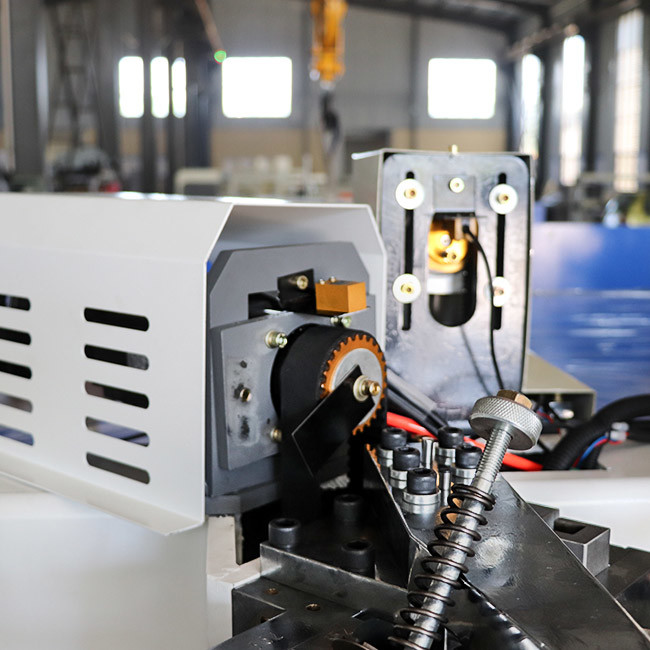

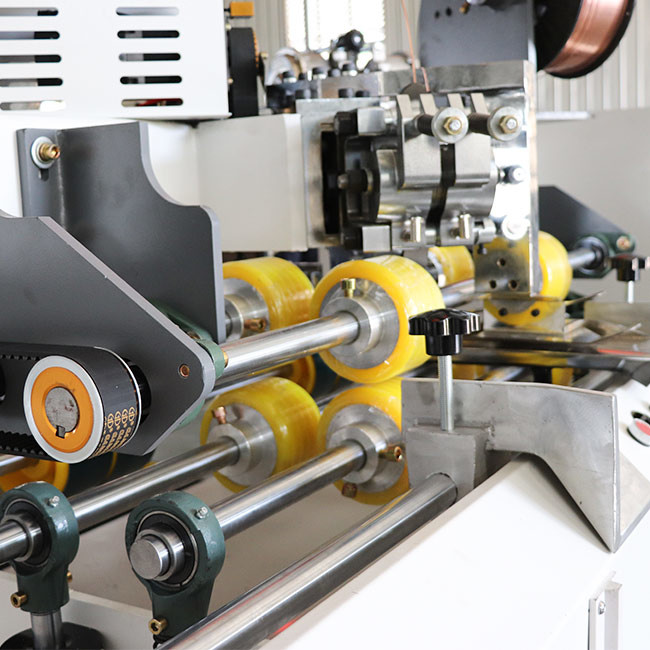

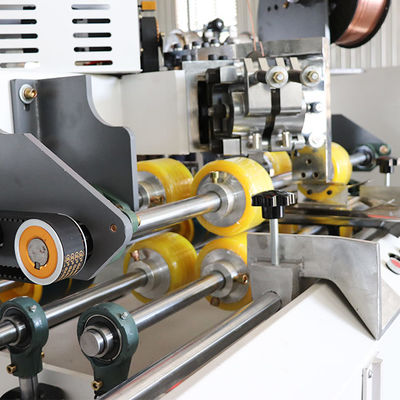

Main Units of Box Stitching Machine
|
|
This transformation and adjustment of carton carton size from the nail it takes only a minute to be completed, greatly saves time and is convenient to operate. The front feeding part automatically counting, the feeding table is provided with a photoelectric sensing device, automatic rising feeder.
|
|
|
Automatic alarm after stitching wire runs out. (to avoid the non wire when the leak to fight, less nail bad product) From semi-finished stapled to the finished and packaged Banding placed in the whole process of only two people operation, the operation is simple and convenient ,lower cost.
|
Accessory List
| NO | NAME | NO. | BRAND |
| 1 | Touch screen | 1 | WEINVIEW,TAIWAN |
| 2 | SERVO MOTOR | 2 | MITSUBISHI,JAPAN |
| 3 | PLC | OMRON,JAPAN | |
| 4 | MOTOR | 1 | LIMING,TAIWAN |
| 5 | BLADE | 1 | Japanese Tungsten Steel |
| 6 | STITCHING HEAD | 1 | Imported from Taiwan, Italian technology |
| 7 | PHOTOELECTRIC SENSOR | 2 | OMRON,JAPAN |
| 8 | BREAKER | Schneider | |
| 9 | BUTTON | Schneider | |
| 10 | Wire Feeder | 1 | SHANGHAI |
| 11 | WALLBOARD | 1 | THICKNESS12mm |
| 12 | BEARINGS | 1 | C&U |
