1250mm Rs4 Corrugated Box Machine , 4kw Corrugated Slotting Machine

Product Details:
Place of Origin: China
Brand Name: RINO
Certification: CE
Model Number: HR-S41225
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wrapped with film or in wooden case
Delivery Time: 20 Working Days After Deposit
Payment Terms: T/T
Supply Ability: 100 Set/Month
  • Detail Information
  • Product Description

Detail Information

Name: Corrugated Board Rotary Chain Feeding Slotter RS4 Max. Feeding Paper : 1250*2450mm
Max. Working Speed: 60pcs/min Slotting Width: 7.5mm
Main Motor : 4kw Usage: Corrugated Board Slotting
High Light:

1250mm Rs4 Corrugated Box Machine

,

4kw Corrugated Slotting Machine

,

Rs4 Corrugated Box Machine

Product Description

Chain Feeding 1225 Corrugated Rotary Slotter Cardboard RS4



Machine Introduction of Corrugated Rotary Slotter Machine



This series corrugated paperboard separating paper creasing line cutting corner opening slot machine ,is a comprehensive production equipment which integrate several process such as cutting corner, rolling line and slicing side, the main characteristic is feeding single paperboard by hand,genenral flexural paperboard is applicable too.

This new and synthetically equipment can finish auto slotting, corner-slicing, creasing-rolling, edge-cutting at same time .



Corrugated Rotary Slotter Machine Parameter



Model

The Max. Feeding Area

(mm)

The Max. Working Speed
(sheet/min)

The Slotting Width

(mm)

The Main Motor power

(KW)

HR-S41225

1250*2450 60 7.5 4

HR-S41425

1450*2450 60 7.5 4

HR-S41425

1450*2950 60 7.5 4

HR-S41625

1650*2450 60 7.5 4

HR-S41625

1650*2950 60 7.5 4



Main Structure



1. Feeding table adopts chain style manual feeding paper.

2. Slotting blade phase adopts 360 degree positive turn and reverse turn, blade axes treated. by rigidity chroming electroplate and nicety grinding ,firmness durable

3. Transmit gear adopt no clearance cooperation, debase gear adjust error.

4. Gear lubricate, adopt spout out style system .prolong gear using life.

5. Slotter phase :electric number digital adjust

6. Combined slotting creasing slitting knives which is easy to change order.

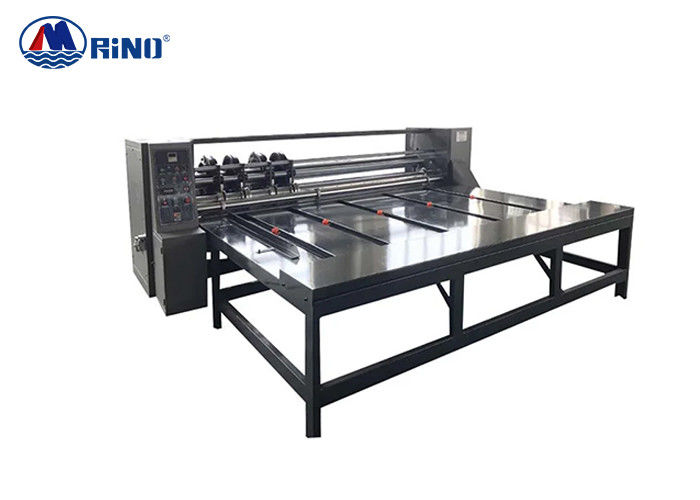

Detailed Picture

1250mm Rs4 Corrugated Box Machine , 4kw Corrugated Slotting Machine 0

1250mm Rs4 Corrugated Box Machine , 4kw Corrugated Slotting Machine 1

FAQ

1. Q: What is the machine warranty?
A :one year.
2. Q: What is the production time while placing order?
A: About 20 days
3. Q: What is the delivery time?
A: 40-60 days after get the payment.
4. Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard
5. Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery
6. Q: Do you have machines in stock?
A:  for standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
7. Q: Do you inspect machines before packing?
A: Of course we do.we have QC department to debug the machine before packing
8. Q: What's the payment term?
A: T/T 30% in advance, the balance paid before delivery.
9.  Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
