Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HC-PL 3/5/7 ply 1800 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 Set/Month |
|
Detail Information |
|||
| Name: | 3/5/7 Ply Corrugated Board Production Line For Carton Box | Size: | 1800mm-2500mm |
|---|---|---|---|
| Speed: | 100m/min | Total Power: | 100kw |
| Total Length Of Line: | 52m | Flute Type: | According To Customers Needs |
| Main Machine: | Single Facer ,preheater,NC Cut Off Machine ,etc. | Max. Pressure: | 1.3Mpa |
| High Light: | 7 Ply Carton Production Line,100m/Min Carton Production Line,100kw 5 Ply Automatic Corrugation Plant |
||
Product Description

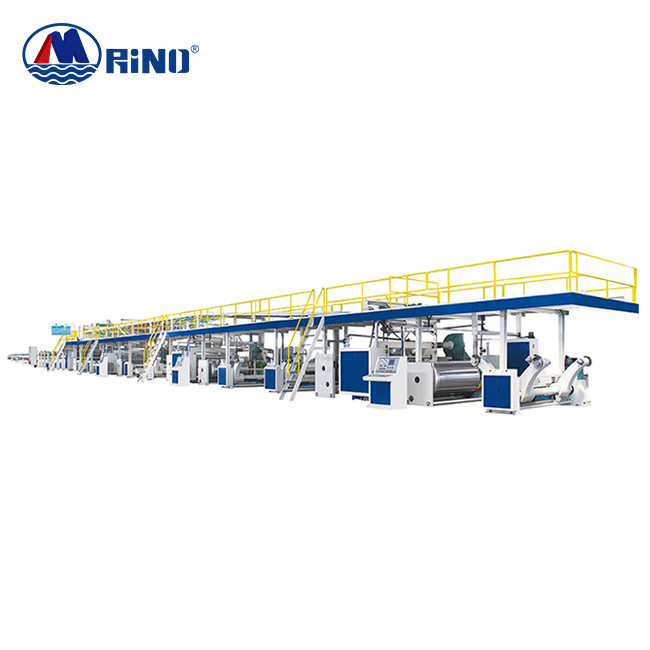

3 5 7 Ply Corrugated Board Production Line For Carton Box
Machine introduction of Corrugated Board Production Line
The corrugated board production line is abbreviated as the tile line, which is the key production equipment of the corrugated box production enterprise. The corrugated board production line is the most important production line equipment in the carton packaging enterprise.Which mainly include single facer machine,mill roll stand, nc cut off machine ,preheater and double facer,etc.
Parameter
| Max. paper width: | 1800mm |
| Max. Width of corrugating roll | 1870mm |
| Max. speed of machine | 100m/min |
| Flute TYPE: | flute type according to client request |
|
Steam consumption: 2000kg/hour Working. pressure: 1.0—1.1MPa Max. pressure 1.3Mpa |
|
| Power requested: | 380V,50Hz,3-phase |
| Total power: | About 100kw for general condition |
| Total length of line: | 52 meters. |
| NO | MACHINES LIST |
|
1 |

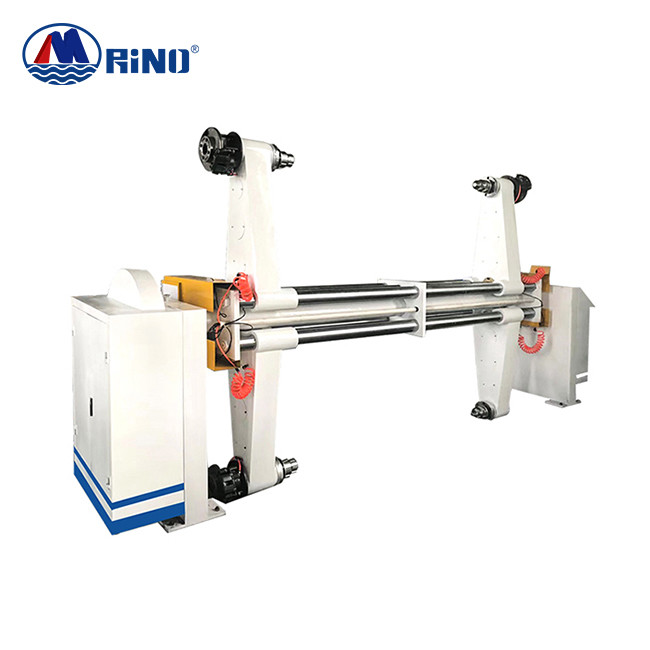

Hydraulic Mill Roll Stand --Support two Dia.1500mm paper mill --Including track and trolley for carry paper mill --Pneumatic brake and spring clutch |
| 2 | Preheater (RG) Ø600mm |
|
3 |
Fingerless Single Facer (SF-280) --Corrugating roller Dia.280mm,with a drum. --Press roller Dia.280mm. with drum.
|
|
4 |
Overhead Bridge --Double vacuum tension control --Electric paper way control |
| 5 |
Double Ply Preheater (RG) Ø600mm |
| 6 |
Glue Machine GM-B -- Glue roller embossed and chrome plated |
|
7 |
Double Facer (SM-S) --Including quality cotton belt 1set --including drive roll stand --including 12 pcs(16 x 600MM) heating plates- |
|
8 |
Thin blade Slitter Scorer ZQS --5 set slitter knives and 8 set scorer wheel --automatic grinding knives |
| 9 |
N.C Cut-off (Computerized order change) --With full servo Computer system |
| 10 | Paper Sheet Delivery |
| 11 | Glue Making Machine |
| 12 | Internal Steam Pipe System |
| 13 | Internal Electric System |
| 14 | Compress Air System |
Corrugated Single Facer Machine
Machine Introduction
* Design speed: 100m/min.
* Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
* corrugating roller: Dia.280mm with a drum.
* Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance
* Gluing roller: surface is embossed with netting design and chrome plated.
* Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
* With preheating and preconditioning rollers.
NC Cut Off Machine
| Width | 1800mm |
| Cutting lenth | 500—9999mm |
| Order keeping | 999orders |
| Cutting precision | ±1mm |
| Power | 11kw |
| Knive roller diameter | 190mm |
| Max.production speed | 100m/min |
Machine Introduction
1. Special structure type, high quality wallboard and seat, reliable and slinky.
2. With watch-window on two sides wallboard, easy for see in manufacturing and maintenance.
3. Driving part adopts hermetic lubricate, make sure high precision, high stability.
4. Adopts high precision and rigidity lapping gear, suit for high speed, oil felt lubrication prolong work-life. Ensure cutting blade accuracy meshing, carton sheets without raw edges.
5. High precision cutting shaft and cutting seat, reliable and slinky.
6. Special structure design in changing blade, easy and fast to change blade.
7. Whole system design C.E standard strictly, pass industry computer test strictly, ensure high quality, long work life and stability.
